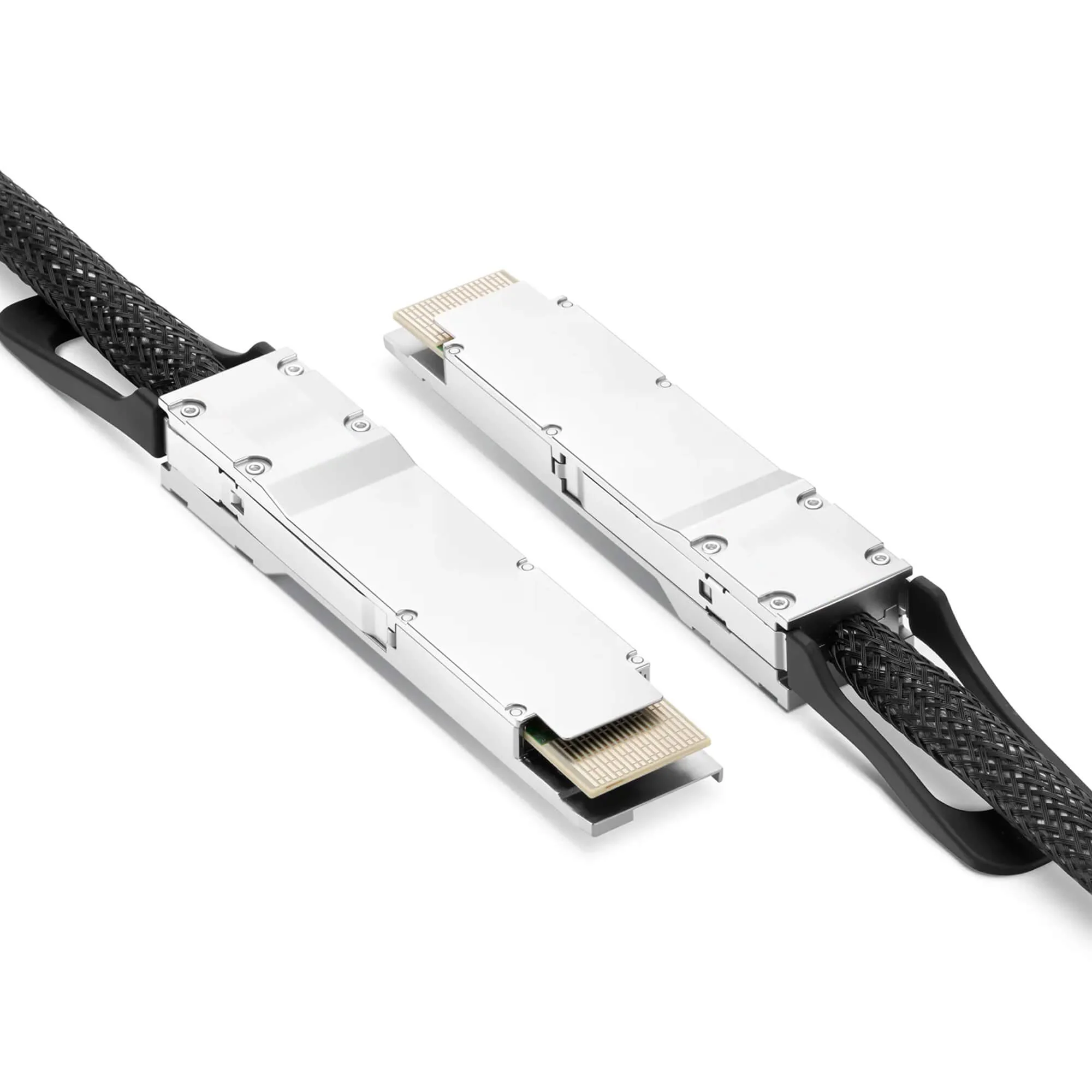

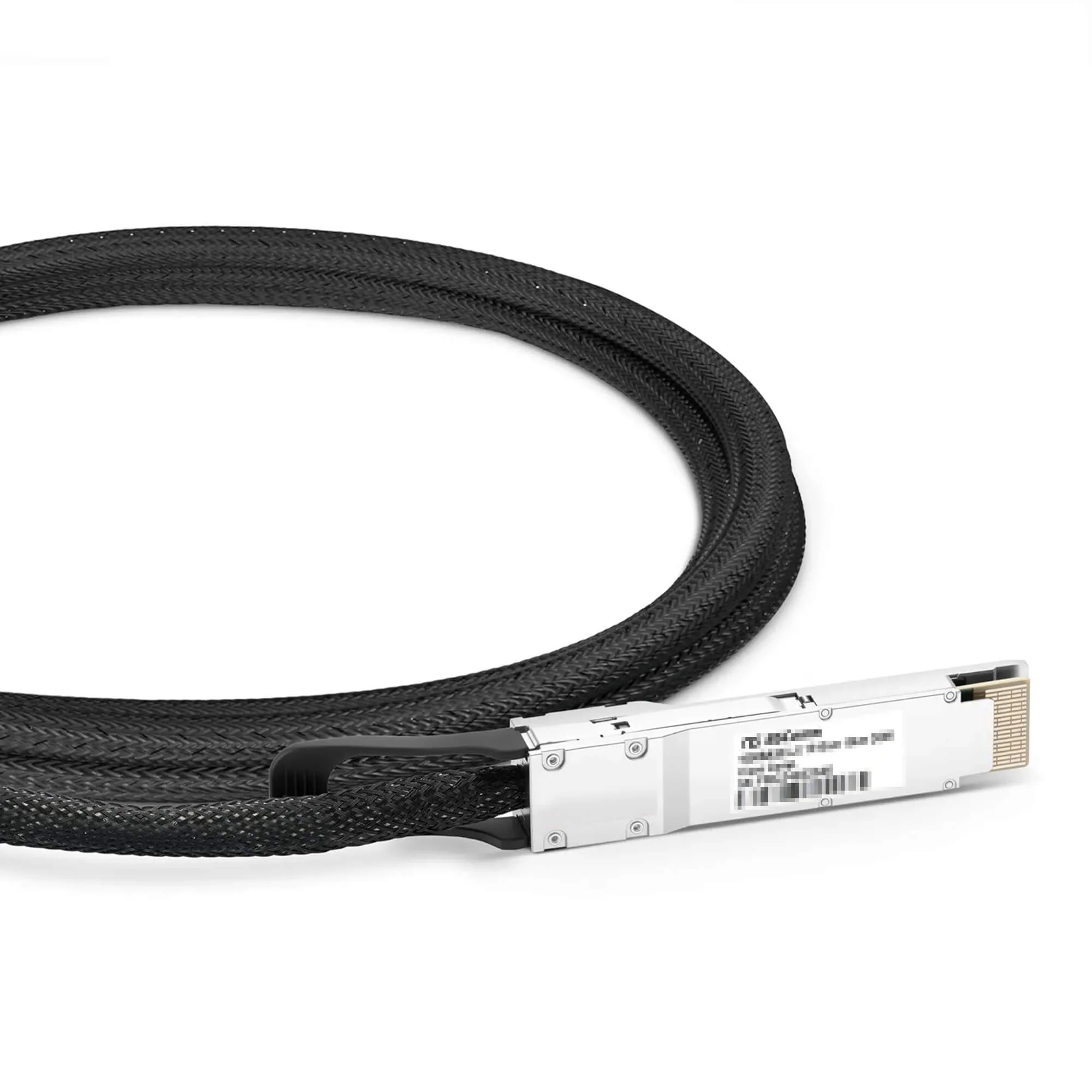

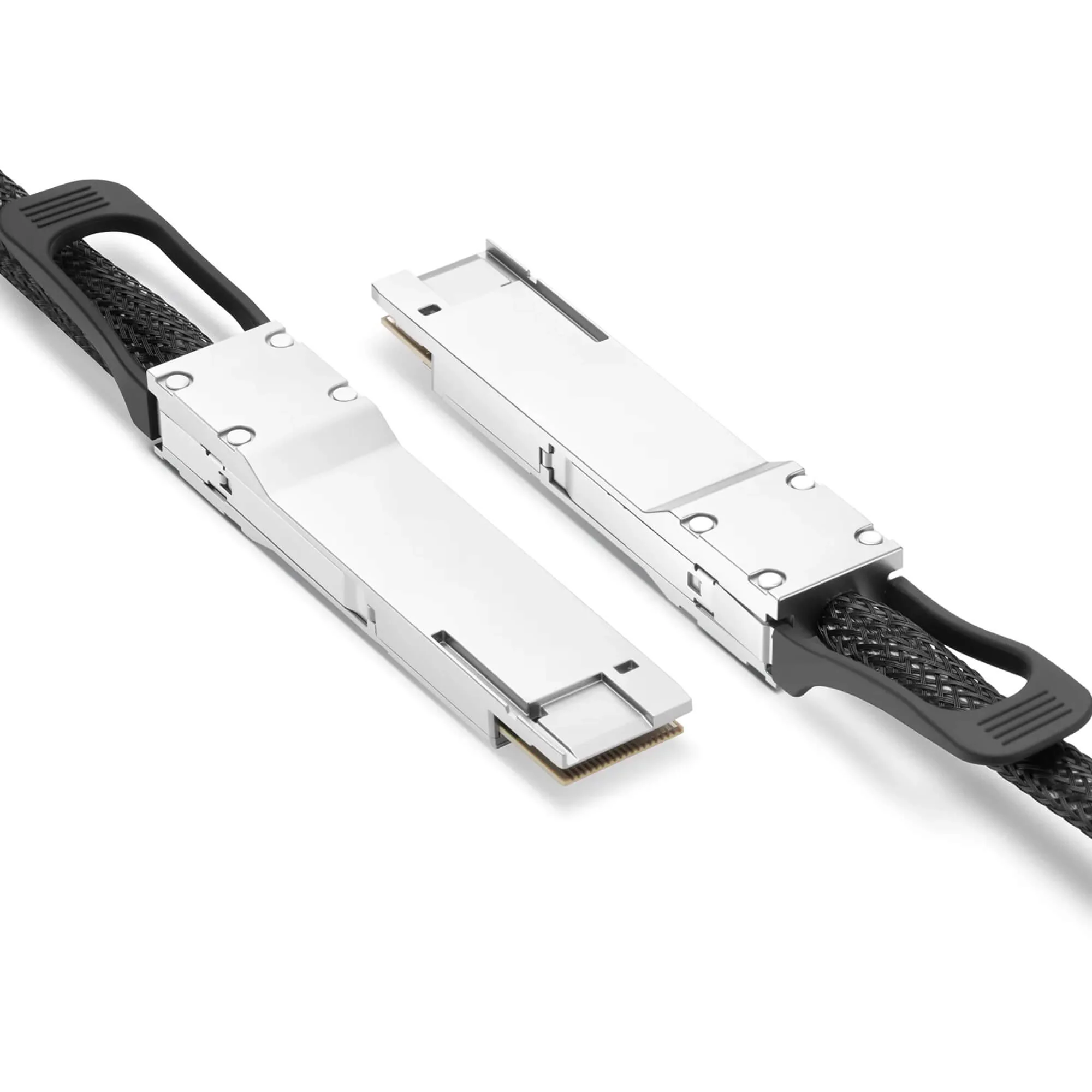

NSComm 800G QSFP-DD Active Electrical Cable up to 5m(16ft)
800G QSFP-DD to QSFP-DD Active Electrical Cable (AEC), 800G Ethernet (Retimed)
Overview
The NSComm 800G QSFP-DD Active Electrical Cable (AEC) is a high-performance copper interconnect for 800G PAM4 short-to-medium reach links, designed with retimer chips at both ends to deliver full signal integrity. Compared with passive copper, AEC is built to reduce PAM4 attenuation and data errors, enabling more reliable 800G connectivity for in-rack and adjacent-rack deployments without the cost and complexity of optics.
Since NVIDIA Ethernet is the mainstream platform in many AI data centers, NSComm supports NVIDIA (ETH) coding options on the product page-recommended for NVIDIA-based switching/NIC environments-while still offering selectable coding for broader multi-vendor use when needed.
This AEC supports a retimed 800GAUI-8 electrical interface (8¡Á106.25G PAM4) for stable 800G operation, with max power consumption 12W per end and a 36.5mm minimum bend radius for clean routing in dense racks. It is compliant with QSFP-DD MSA, IEEE 802.3ck, and CMIS 5.0.
Compatibility Options (Coding) - NVIDIA Focus, Multi-Vendor Ready
-
Recommended option: choose NVIDIA (ETH) coding for mainstream NVIDIA Ethernet switch/NIC environments.
-
Also available: selectable coding options for other platforms (choose the matching option on the product page).
Not sure which coding you need? Contact our certified engineers and we'll help confirm the right option for your exact model.
Use Scenarios / Applications
-
800G switch-to-switch links: connect 800G QSFP-DD ports between leaf/spine switches within a rack row.
-
AI racks (Ethernet): link 800G switches to high-speed endpoints in GPU/AI pods where bandwidth density matters.
-
In-rack / adjacent-rack interconnects: short-to-medium reach copper links for fast deployment without optics.
-
When passive copper is not enough: choose AEC to improve PAM4 signal integrity at 800G.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 800G QSFP-DD Active Electrical Cable (AEC) |
| Form Factor | QSFP-DD to QSFP-DD |
| Max Data Rate | 800Gbps |
| Media | Copper |
| Cable Type | AEC (Active Electrical Cable) |
| Electrical Interface | 800G AUI-8 (8¡Á106.25G PAM4, retimed) |
| Modulation | 8¡Á100G-PAM4 |
| Max Power Consumption | 12W per end |
| Minimum Bend Radius | 36.5mm |
| Wire AWG | 32AWG |
| Jacket Material | PET |
| Temperature Range | 0 to 70¡ãC |
| Application | 800G Ethernet |
| Standards / Compliance | QSFP-DD MSA Rev 6.3, IEEE 802.3ck, CMIS 5.0 |
| Warranty | 5 Years |
Why Choose NSComm 800G QSFP-DD AEC?
-
NVIDIA-ready: supports NVIDIA (ETH) coding for mainstream deployments.
-
Better PAM4 stability: dual-end retimers improve signal integrity vs passive copper.
-
High port density: supports 800G for next-gen leaf/spine and AI fabrics.
-
Clean cabling: 36.5mm bend radius supports tidy routing in dense racks.
-
Cost-effective: practical alternative to optics for short-to-medium reach links.
-
Engineer-backed support: coding selection and topology guidance available.
Options
Available lengths: 1m, 2m, 3m, 5m
Coding options: select NVIDIA (ETH) or other vendor coding on the product page
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
