NSComm NVIDIA/Mellanox Compatible 800G OSFP Finned Top Ethernet Active Electrical Cable up to 5m(16ft)
NSComm NVIDIA/Mellanox Compatible 800G OSFP Finned Top Ethernet Active Electrical Cable up to 5m(16ft)

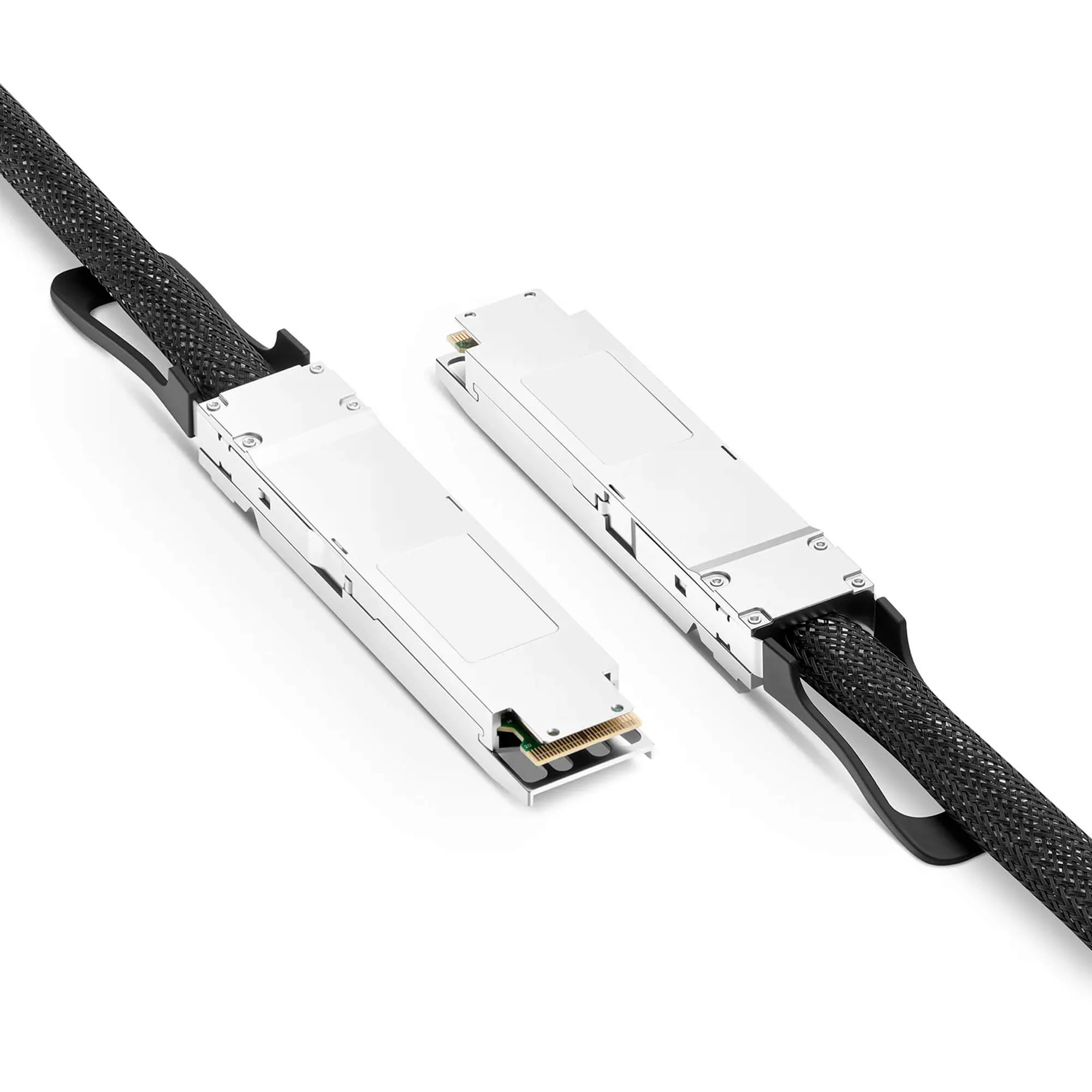

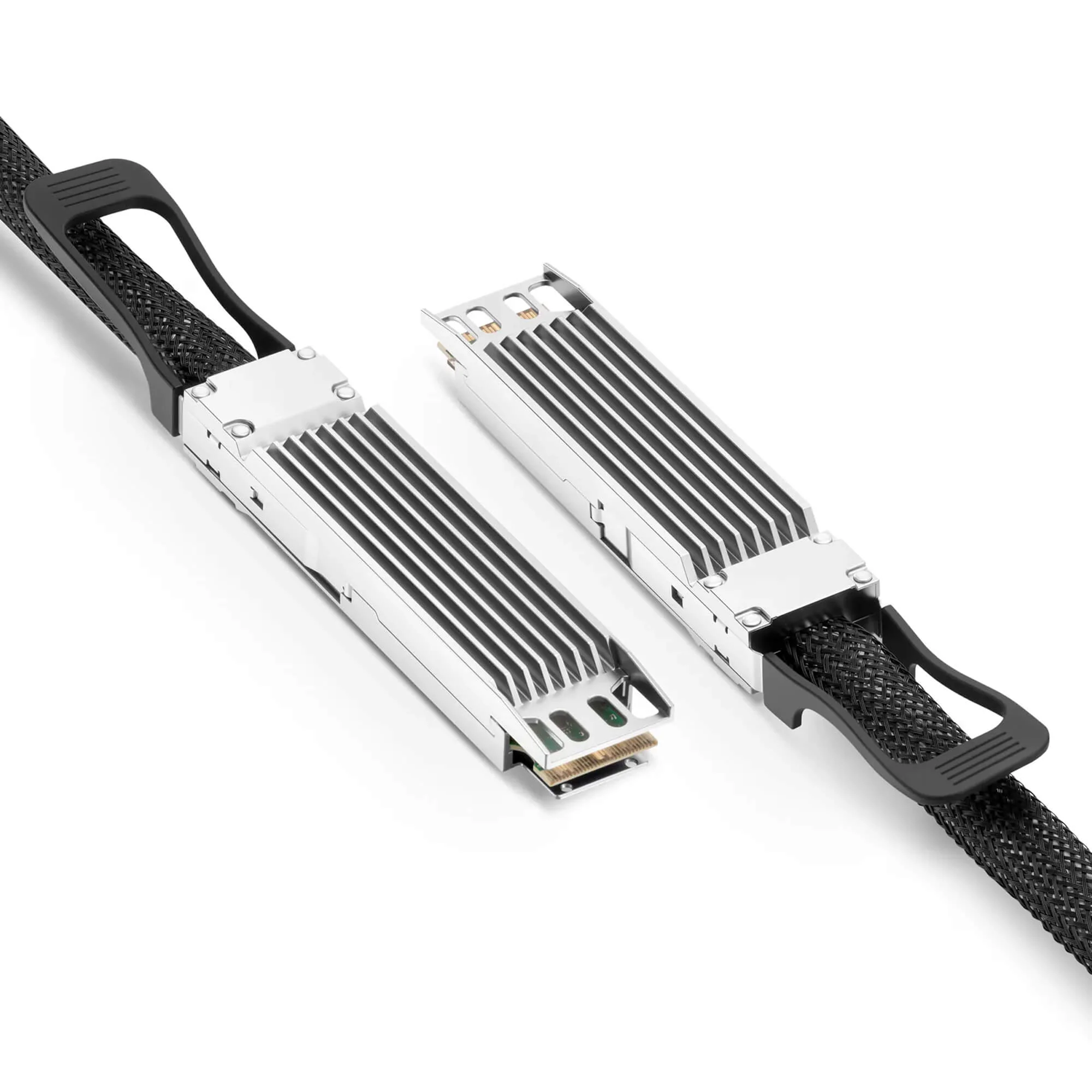

800G OSFP (Finned Top) to OSFP (Finned Top) Ethernet Active Electrical Cable (AEC)
Overview
The NSComm 800G OSFP Finned Top Active Electrical Cable (AEC) is a high-performance copper interconnect for 800G PAM4 Ethernet, built with retimer chips at both ends to deliver strong signal integrity on short-to-medium reach links. Compared with passive copper, AEC is designed to reduce PAM4 attenuation and data loss, making it a practical choice when you want stable 800G connectivity without deploying optics.
Because NVIDIA Ethernet is the dominant platform in many AI data centers, NSComm supports NVIDIA (ETH) coding options on the product page-recommended for NVIDIA switch/NIC environments-while still offering selectable options for broader multi-vendor use.
The OSFP finned-top design adds cooling headroom for dense switch cages, and the cable supports 8¡Á100G PAM4 signaling. It is compliant with IEEE 802.3ck, CMIS 5.0, and OSFP MSA, and can also support 400G configurations for flexible deployments.
Compatibility Options (Coding) - NVIDIA Focus, Multi-Vendor Ready
-
Recommended option: choose NVIDIA (ETH) coding for mainstream NVIDIA Ethernet switch/NIC environments.
-
Also available: selectable coding options for other platforms (choose the matching option on the product page).
Not sure which coding you need? Contact our certified engineers and we'll help confirm the right option for your exact model.
Use Scenarios / Applications
-
800G switch-to-switch links: connect 800G OSFP ports between leaf/spine switches inside a rack row.
-
AI racks (Ethernet): high-bandwidth OSFP links in GPU/AI pods where port density and stability matter.
-
In-rack / adjacent-rack interconnects: short-to-medium copper links for fast rollout without optics.
-
Thermal-aware 800G builds: finned-top OSFP supports dense cages where airflow and heat dissipation are important.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 800G OSFP Finned Top Ethernet Active Electrical Cable (AEC) |
| Form Factor | OSFP (Finned Top) to OSFP (Finned Top) |
| Max Data Rate | 800Gbps |
| Media | Copper |
| Cable Type | AEC (Active Electrical Cable) |
| Modulation | 8¡Á100G-PAM4 |
| Power Consumption | ¡Ü12W per end |
| Minimum Bend Radius | 53mm |
| Wire AWG | 28AWG |
| Jacket Material | PET |
| Temperature Range | 0 to 70¡ãC |
| Standards / Compliance | OSFP MSA, IEEE 802.3ck, CMIS 5.0 |
| Warranty | 5 Years |
Why Choose NSComm 800G OSFP AEC?
-
NVIDIA-ready: supports NVIDIA (ETH) coding for mainstream deployments.
-
Better PAM4 stability: dual-end retimers improve signal integrity vs passive copper.
-
High port density: supports 800G for next-gen Ethernet fabrics.
-
Thermal-friendly: OSFP finned top supports dense switch cages.
-
Cost-effective: strong alternative to optics for short-to-medium reach links.
-
Engineer-backed support: coding selection and topology guidance available.
