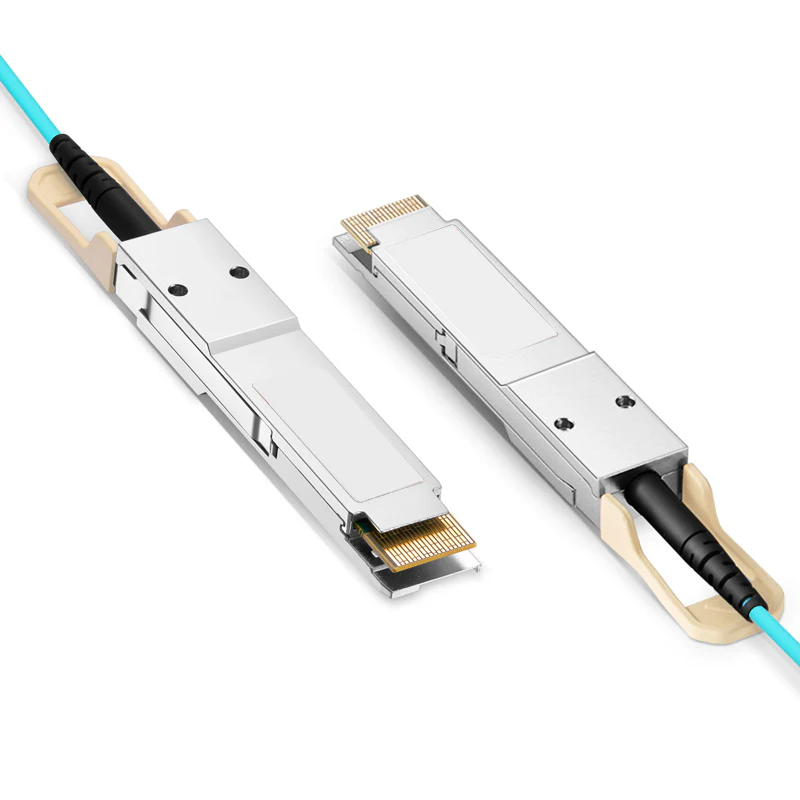

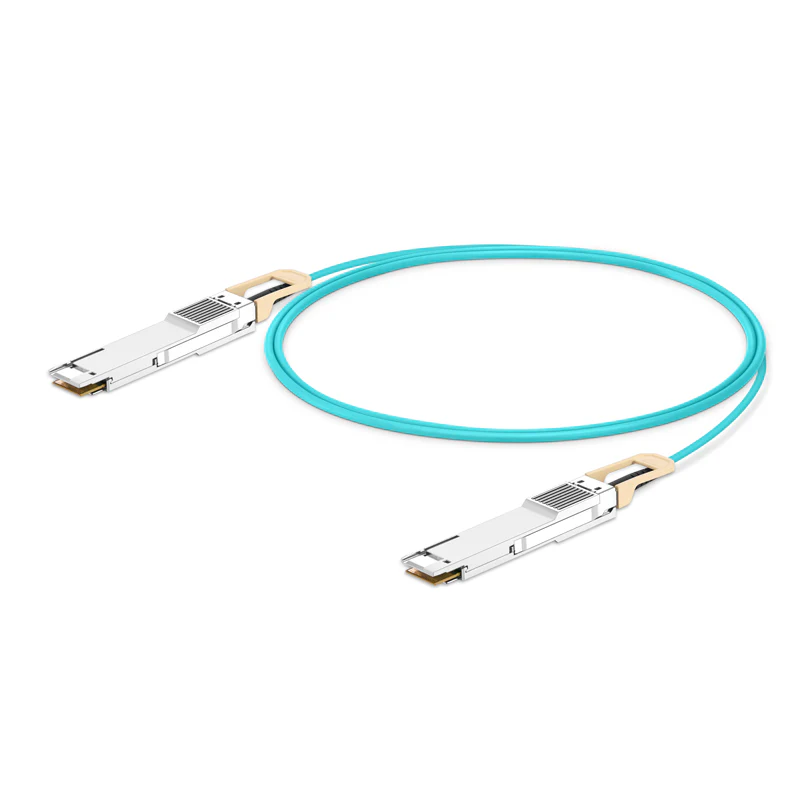

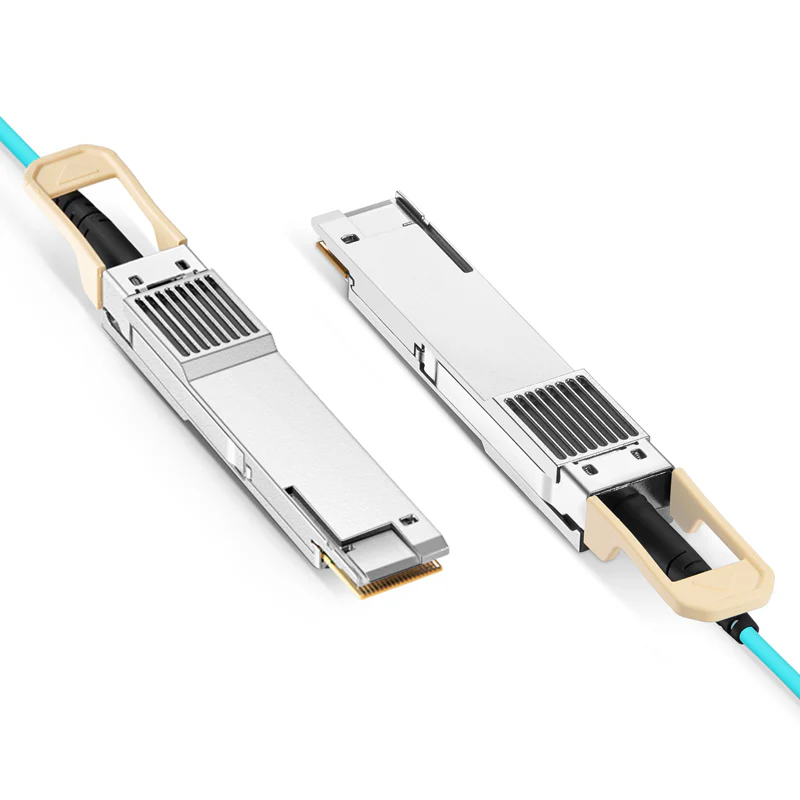

NSComm 400G QSFP-DD to QSFP-DD Active Optical Cable, OM3 Multimode, up to 30m
400G QSFP-DD to QSFP-DD Active Optical Cable (AOC), OM3, up to 30 m (98 ft), Custom up to 100 m (328 ft)
Overview
The NSComm 400G QSFP-DD to QSFP-DD Active Optical Cable (AOC) is a high-performance, cost-effective interconnect solution for 400 Gigabit Ethernet applications in modern data centers, cloud computing, and high-performance computing (HPC) clusters.
Utilizing OM3 multimode fiber, this AOC supports standard stocked lengths up to 30 m (98 ft), with custom builds up to 100 m (328 ft) for extended deployment flexibility.
Equipped with QSFP-DD connectors on both ends, the cable provides 400 Gbps bandwidth over 8×50 Gbps PAM4 lanes. It features a hot-pluggable design, low power consumption (≤ 7 W per end), and strong EMI immunity.
Integrated Digital Optical Monitoring (DOM) supports real-time link diagnostics, enabling proactive network maintenance. Compliant with QSFP-DD MSA and IEEE 802.3bs standards.
Compatible Brands
The NSComm 400G QSFP-DD AOC is designed for interoperability with equipment from top-tier vendors such as Cisco, Huawei, Juniper, Arista, Dell and Nvidia.
Need to confirm compatibility with a specific device? [Contact Us Now] for assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G QSFP-DD to QSFP-DD Active Optical Cable (AOC) |
| Data Rate | 400 Gbps (8×50 Gbps PAM4 lanes) |
| Fiber Type | OM3 Multimode Fiber |
| Max Cable Distance | 30 m (98 ft) standard; up to 100 m (328 ft) custom |
| Connector Type | QSFP-DD to QSFP-DD |
| Monitoring Feature | Digital Optical Monitoring (DOM) |
| Power Consumption | ≤ 7 W per end |
| Temperature Range | 0 °C to 70 °C |
| Bend Radius | Minimum 30 mm |
| Standards Compliance | QSFP-DD MSA, IEEE 802.3bs, RoHS |
| Applications | 400G switch-to-switch, server uplinks, high-bandwidth aggregation |
Why Choose NSComm 400G AOC?
-
Ultra-high bandwidth: 400 Gbps over 8×50 Gbps PAM4 lanes.
-
Flexible deployment: Standard up to 30 m (98 ft), custom builds up to 100 m (328 ft).
-
Efficient power profile: ≤ 7 W per end, optimized for large-scale data centers.
-
Advanced diagnostics: DOM enables real-time link monitoring and fault detection.
-
Broad interoperability: Validated across major vendor switches and servers.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft), 20 m (66 ft), 30 m (98 ft)
Custom lengths available:
50 m (164 ft), 75 m (246 ft), 100 m (328 ft)
