NSComm 400G QSFP56-DD to 4x100G QSFP56 Active Optical Cable, OM3 Multimode, up to 30m
400G QSFP56-DD to 4×100G QSFP56 Active Optical Cable (AOC), OM3, up to 30 m (98 ft), Custom up to 100 m (328 ft)
Overview
The NSComm 400G QSFP56-DD to 4×100G QSFP56 Active Optical Cable (AOC) is a high-density breakout solution that enables 400G to 4×100G Ethernet connectivity in hyperscale data centers, HPC clusters, and enterprise networks.
Utilizing OM3 multimode fiber, it supports standard stocked lengths up to 30 m (98 ft), with custom builds available up to 100 m (328 ft) for extended reach.

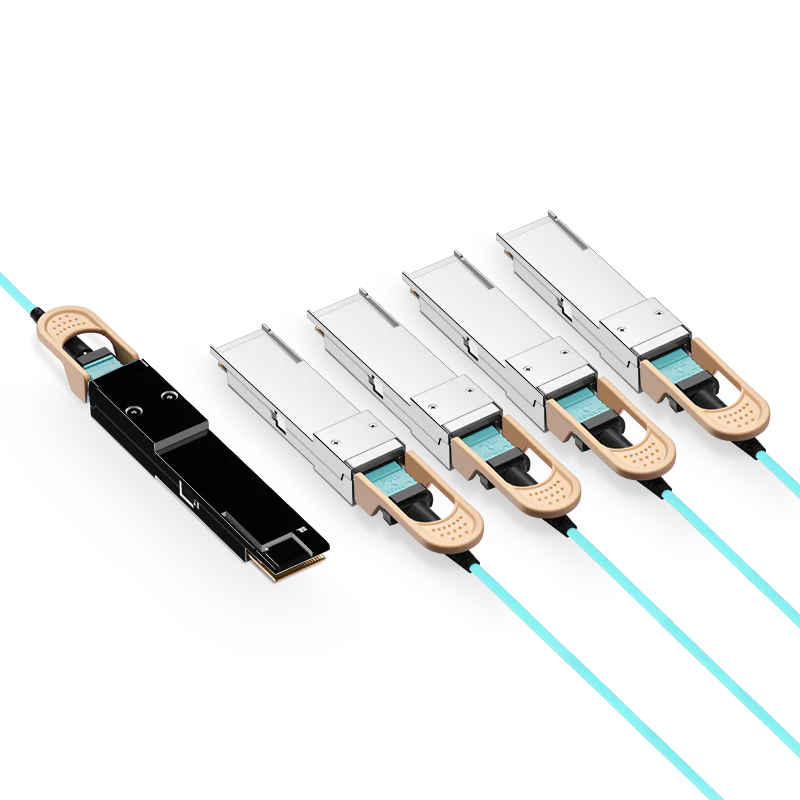

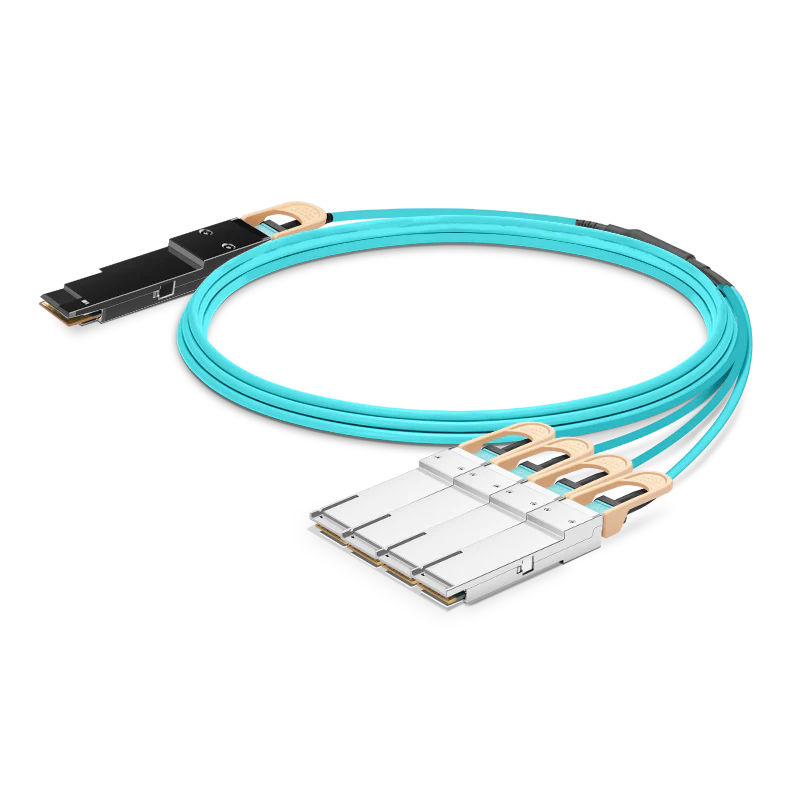

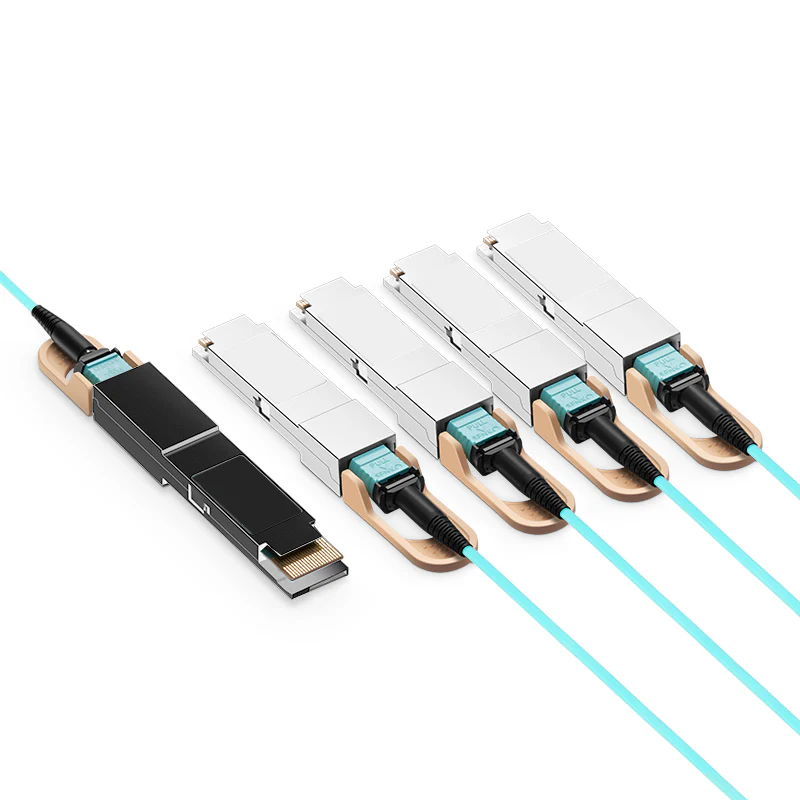

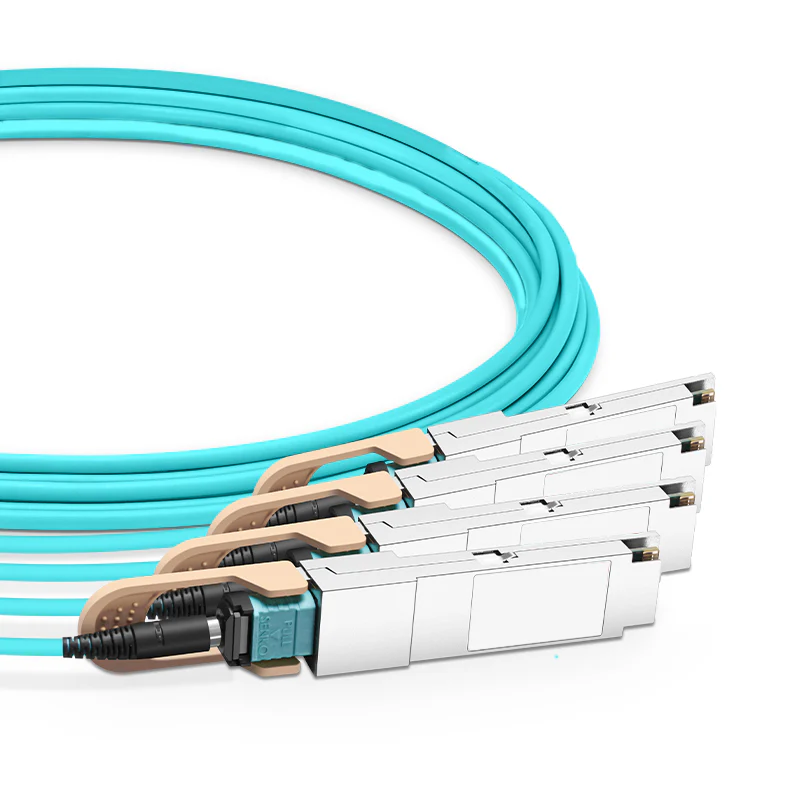

This AOC integrates one QSFP56-DD connector on one end and four QSFP56 connectors on the other, providing 400 Gbps total bandwidth, broken into four independent 100 Gbps PAM4 channels.
With low power consumption (≤ 8 W per end), DOM (Digital Optical Monitoring) support, and excellent EMI performance, it delivers reliable, scalable interconnects for demanding networking environments.
Compatible Brands
NSComm 400G QSFP56-DD to 4×100G QSFP56 AOC is designed for compatibility with switches and servers from Cisco, Arista, Dell and Nvidia.
Need confirmation for your specific switch model? [Contact Us Now] and our support team will help.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G QSFP56-DD to 4×100G QSFP56 Active Optical Cable (AOC) |
| Data Rate | 400 Gbps (4×100 Gbps breakout, PAM4) |
| Fiber Type | OM3 Multimode Fiber |
| Max Cable Distance | 30 m (98 ft) standard; up to 100 m (328 ft) custom |
| Connector Type | 1× QSFP56-DD to 4× QSFP56 |
| Monitoring Feature | Digital Optical Monitoring (DOM) |
| Power Consumption | ≤ 8 W per end |
| Temperature Range | 0 °C to 70 °C |
| Bend Radius | Minimum 30 mm |
| Standards Compliance | QSFP56-DD MSA, IEEE 802.3cd, IEEE 802.3bs, RoHS |
| Applications | 400G to 4×100G breakout links, aggregation, server-to-switch uplinks |
Why Choose NSComm 400G QSFP56-DD to 4×100G AOC?
-
Scalable breakout solution: Converts one 400G port into four 100G channels.
-
Flexible lengths: Stocked up to 30 m (98 ft); custom builds up to 100 m (328 ft).
-
Low power, high efficiency: Consumes ≤ 8 W per end.
-
Proactive monitoring: DOM provides real-time diagnostics and link monitoring.
-
Multi-vendor interoperability: Extensively tested with major networking platforms.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft), 20 m (66 ft), 30 m (98 ft)
Custom lengths available:
50 m (164 ft), 75 m (246 ft), 100 m (328 ft)
