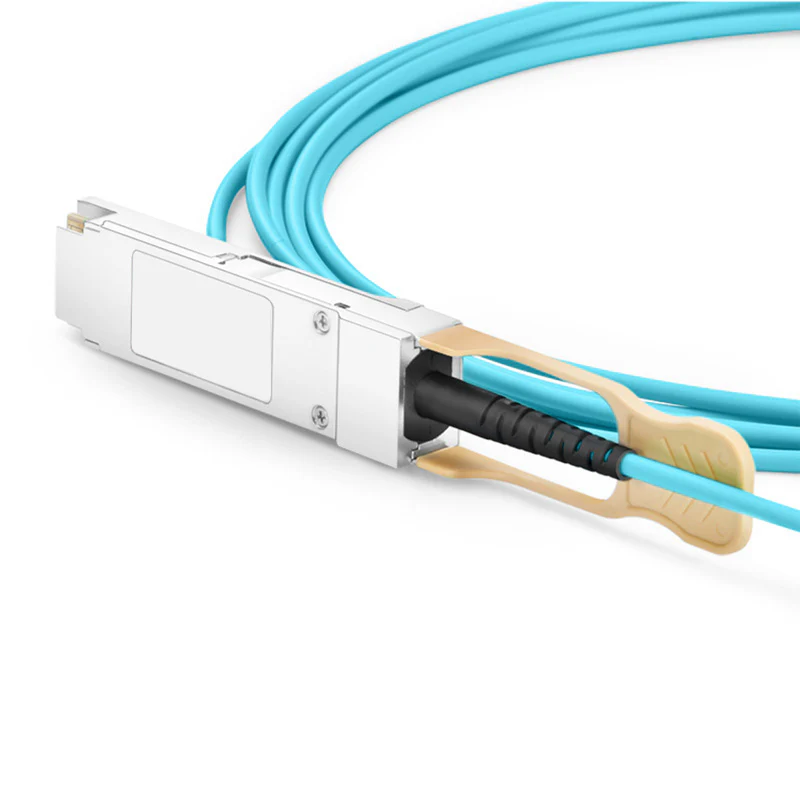

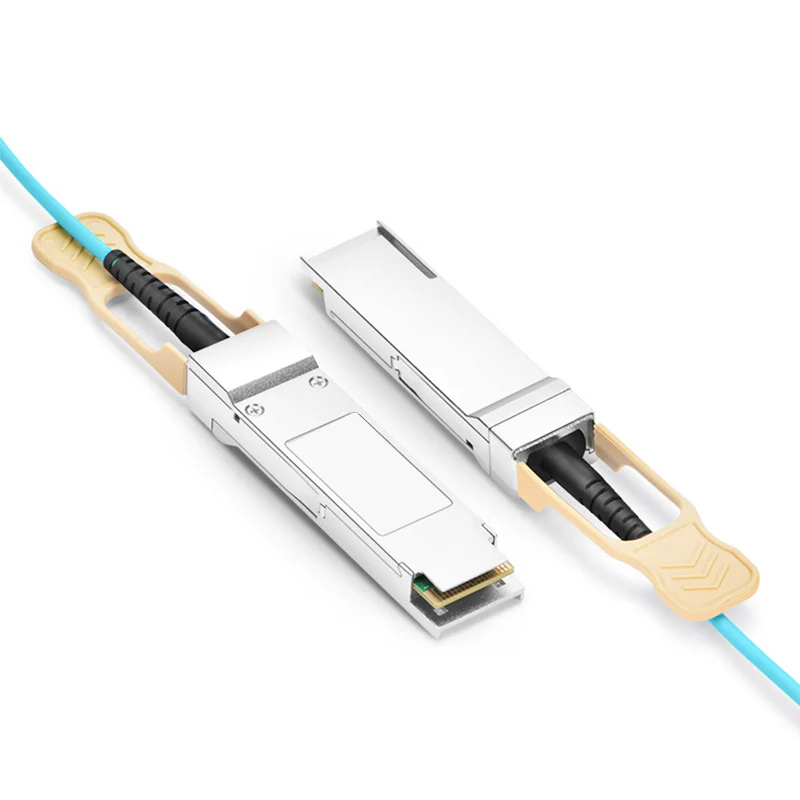

NSComm 100G QSFP28 to QSFP28 Active Optical Cable, OM3 Multimode, up to 30m
100G QSFP28 to QSFP28 Active Optical Cable (AOC), OM3, up to 30 m (98 ft), Custom up to 100 m (328 ft)
Overview
The NSComm 100G QSFP28 to QSFP28 Active Optical Cable (AOC) is a high-bandwidth, cost-effective solution for short-range 100 Gigabit Ethernet interconnects in data centers, HPC clusters, and enterprise networks.
Built on OM3 multimode fiber, it supports standard lengths up to 30 m (98 ft) and custom builds up to 100 m (328 ft) for extended reach. Each end is terminated with a hot-pluggable QSFP28 connector, supporting 100 Gbps (4×25 Gbps lanes) with superior signal integrity and low power consumption (typically ≤ 3.5 W per end).
DOM (Digital Optical Monitoring) provides real-time diagnostics, ensuring network reliability and proactive maintenance.Fully compliant with QSFP28 MSA and IEEE 802.3bj/802.3bm standards.
Compatible Brands
The NSComm 100G QSFP28 to QSFP28 AOC is compatible with networking and server equipment from major manufacturers such as Cisco, Huawei, Juniper, Arista, Dell and Nvidia.
Need compatibility confirmation for a specific model? [Contact Us Now] and our engineers will assist.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 100G QSFP28 to QSFP28 Active Optical Cable (AOC) |
| Data Rate | 100 Gbps (4×25 Gbps) |
| Fiber Type | OM3 Multimode Fiber |
| Max Cable Distance | 30 m (98 ft) standard; up to 100 m (328 ft) custom |
| Connector Type | QSFP28 to QSFP28 |
| Monitoring Feature | Digital Optical Monitoring (DOM) |
| Power Consumption | ≤ 3.5 W per end |
| Temperature Range | 0 °C to 70 °C |
| Bend Radius | Minimum 30 mm |
| Standards Compliance | QSFP28 MSA, IEEE 802.3bj, IEEE 802.3bm, RoHS |
| Applications | High-density server-to-switch, switch-to-switch, storage interconnects |
Why Choose NSComm 100G AOC?
-
High bandwidth: Supports full 100 Gbps across 4×25 Gbps lanes.
-
Flexible deployment: Stocked up to 30 m (98 ft), custom builds up to 100 m (328 ft).
-
Low power design: Typically ≤ 3.5 W per end, reducing cooling and OPEX.
-
Easy integration: Hot-pluggable QSFP28 connectors for simple installation.
-
Proven compatibility: Extensively tested with all major switch and server brands.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft), 20 m (66 ft), 30 m (98 ft)
Custom lengths available:
50 m (164 ft), 75 m (246 ft), 100 m (328 ft)
