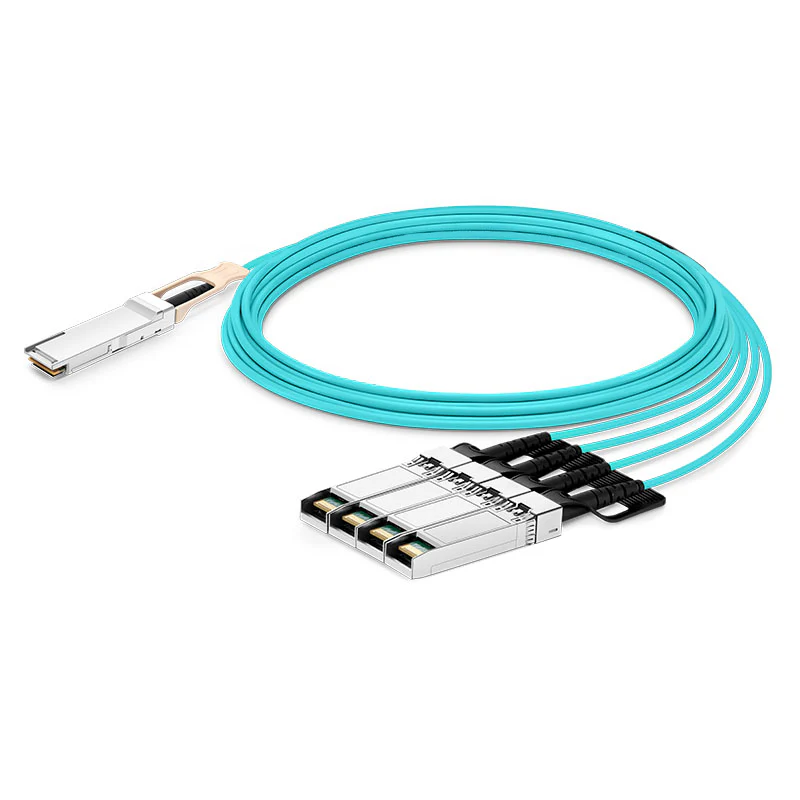

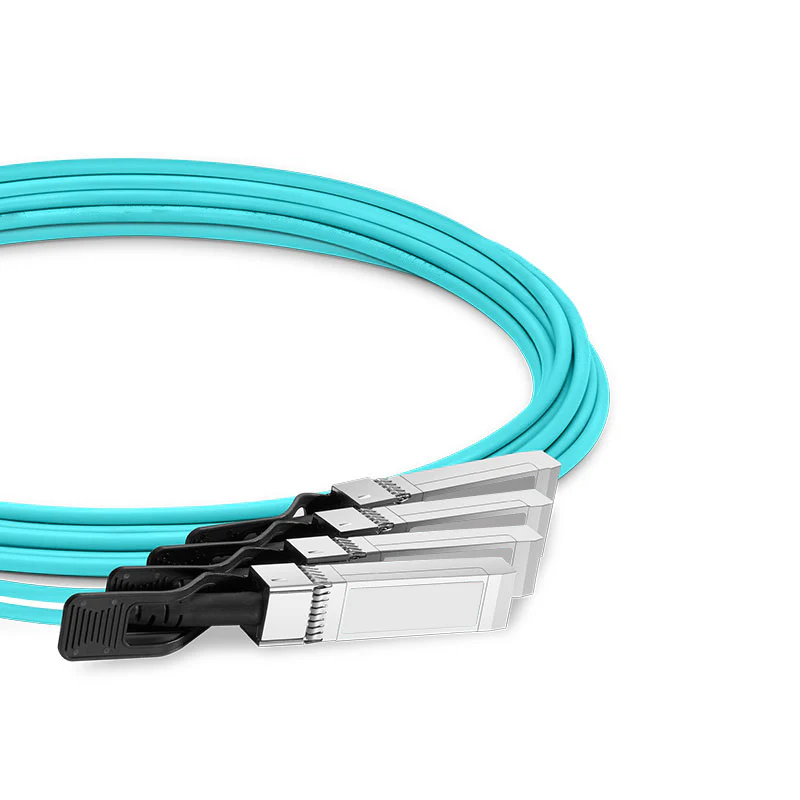

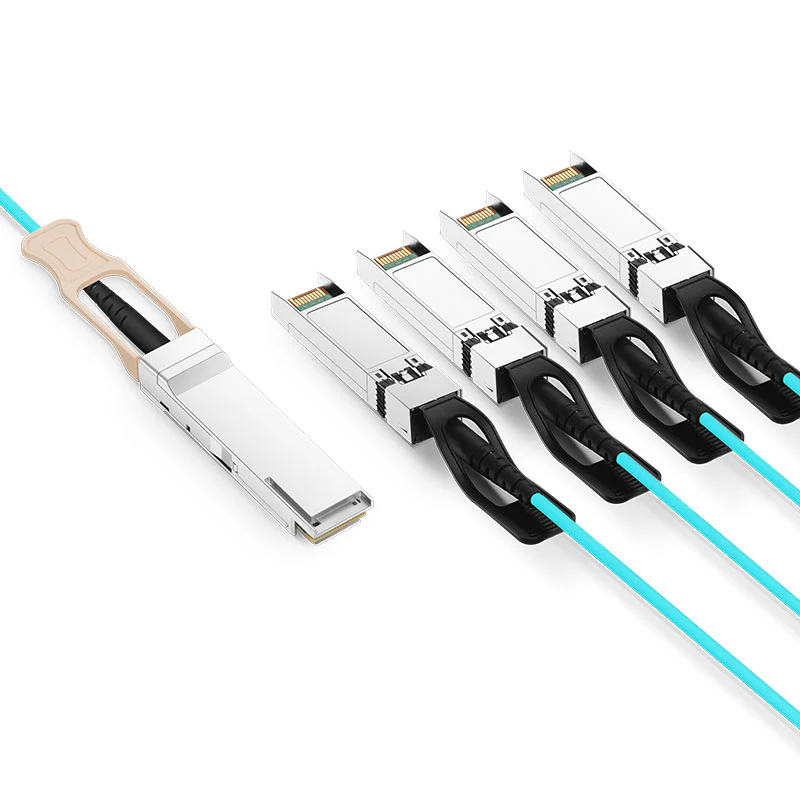

NSComm 100G QSFP28 to 4x25G SFP28 Active Optical Cable, OM3 Multimode, up to 30m
100G QSFP28 to 4×25G SFP28 Active Optical Cable (AOC), OM3, up to 30 m (98 ft), Custom up to 100 m (328 ft)
Overview
The NSComm 100G QSFP28 to 4×25G SFP28 Active Optical Cable (AOC) is designed for 100G to 25G breakout connections in high-performance data centers, enterprise networks, and HPC clusters.
Constructed with OM3 multimode fiber, it supports standard lengths up to 30 m (98 ft) and custom lengths up to 100 m (328 ft) for flexible deployments. This breakout AOC features one hot-pluggable QSFP28 connector on one end and four hot-pluggable SFP28 connectors on the other.
Delivering 100 Gbps (4×25 Gbps lanes) with low latency and high reliability. It consumes ≤ 3.5 W per end, supports Digital Optical Monitoring (DOM), and is compliant with QSFP28/SFP28 MSA standards and IEEE 802.3by/802.3bj/802.3bm.
Compatible Brands
This NSComm breakout AOC is compatible with a wide range of networking equipment, including switches and servers from Cisco, Huawei, Juniper, Arista, Dell and Nvidia.
Need to confirm compatibility for your specific model? [Contact Us Now] and our team will help.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 100G QSFP28 to 4×25G SFP28 Active Optical Cable (AOC) |
| Data Rate | 100 Gbps (4×25 Gbps breakout) |
| Fiber Type | OM3 Multimode Fiber |
| Max Cable Distance | 30 m (98 ft) standard; up to 100 m (328 ft) custom |
| Connector Type | 1× QSFP28 to 4× SFP28 |
| Monitoring Feature | Digital Optical Monitoring (DOM) |
| Power Consumption | ≤ 3.5 W per end |
| Temperature Range | 0 °C to 70 °C |
| Bend Radius | Minimum 30 mm |
| Standards Compliance | QSFP28/SFP28 MSA, IEEE 802.3by, IEEE 802.3bj, IEEE 802.3bm, RoHS |
| Applications | 100G to 25G breakout links, server-to-switch uplinks, aggregation nodes |
Why Choose NSComm 100G QSFP28 to 4×25G SFP28 AOC?
-
Flexible breakout connectivity: Simplifies 100G to 25G port mapping with a single assembly.
-
Multiple length options: Stocked up to 30 m (98 ft); custom builds up to 100 m (328 ft).
-
Energy efficient: ≤ 3.5 W per end, reducing cooling and operational costs.
-
Hot-pluggable: Easy to install and replace without downtime.
-
Multi-vendor compatibility: Fully tested with leading switch and server brands.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft), 20 m (66 ft), 30 m (98 ft)
Custom lengths available:
50 m (164 ft), 75 m (246 ft), 100 m (328 ft)
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
