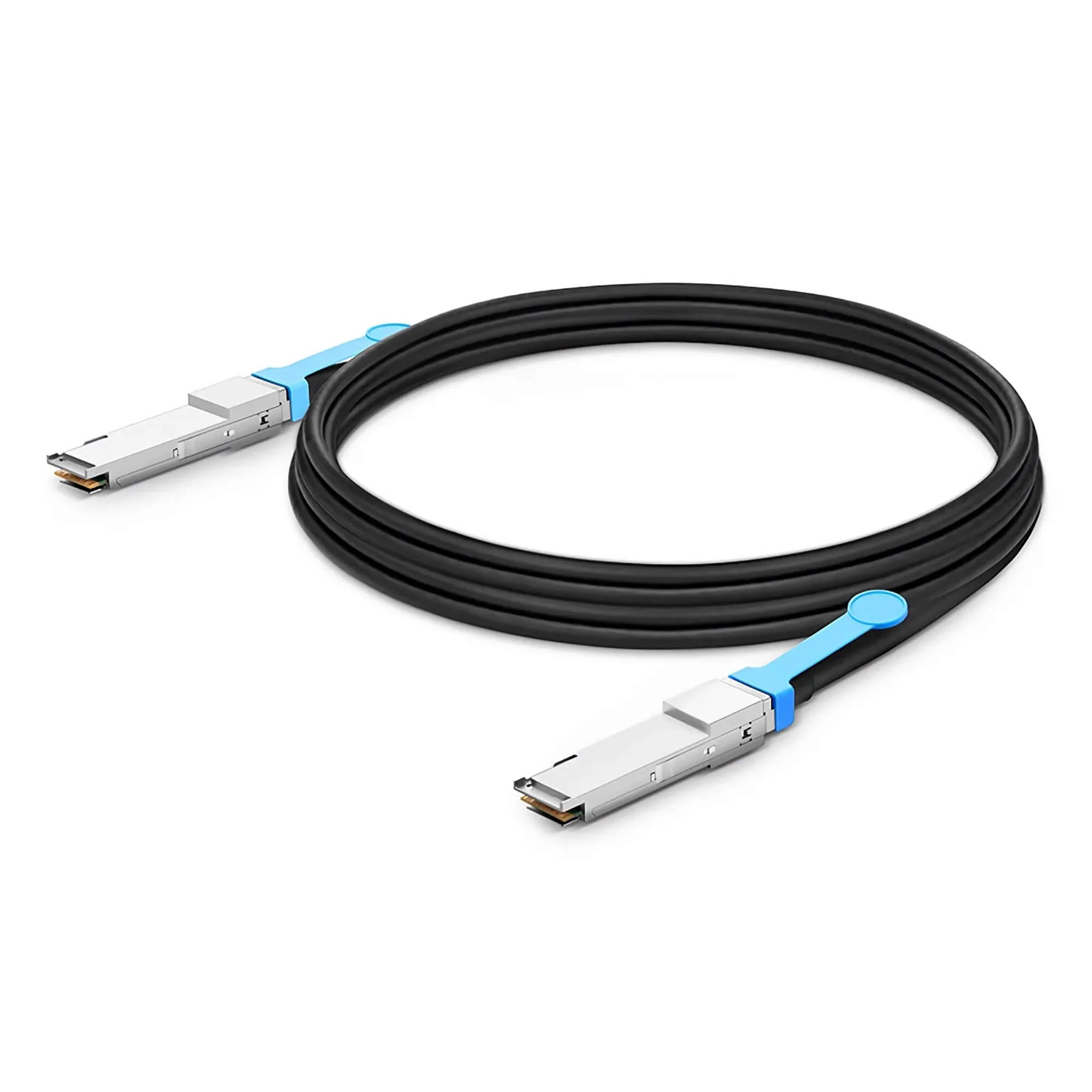

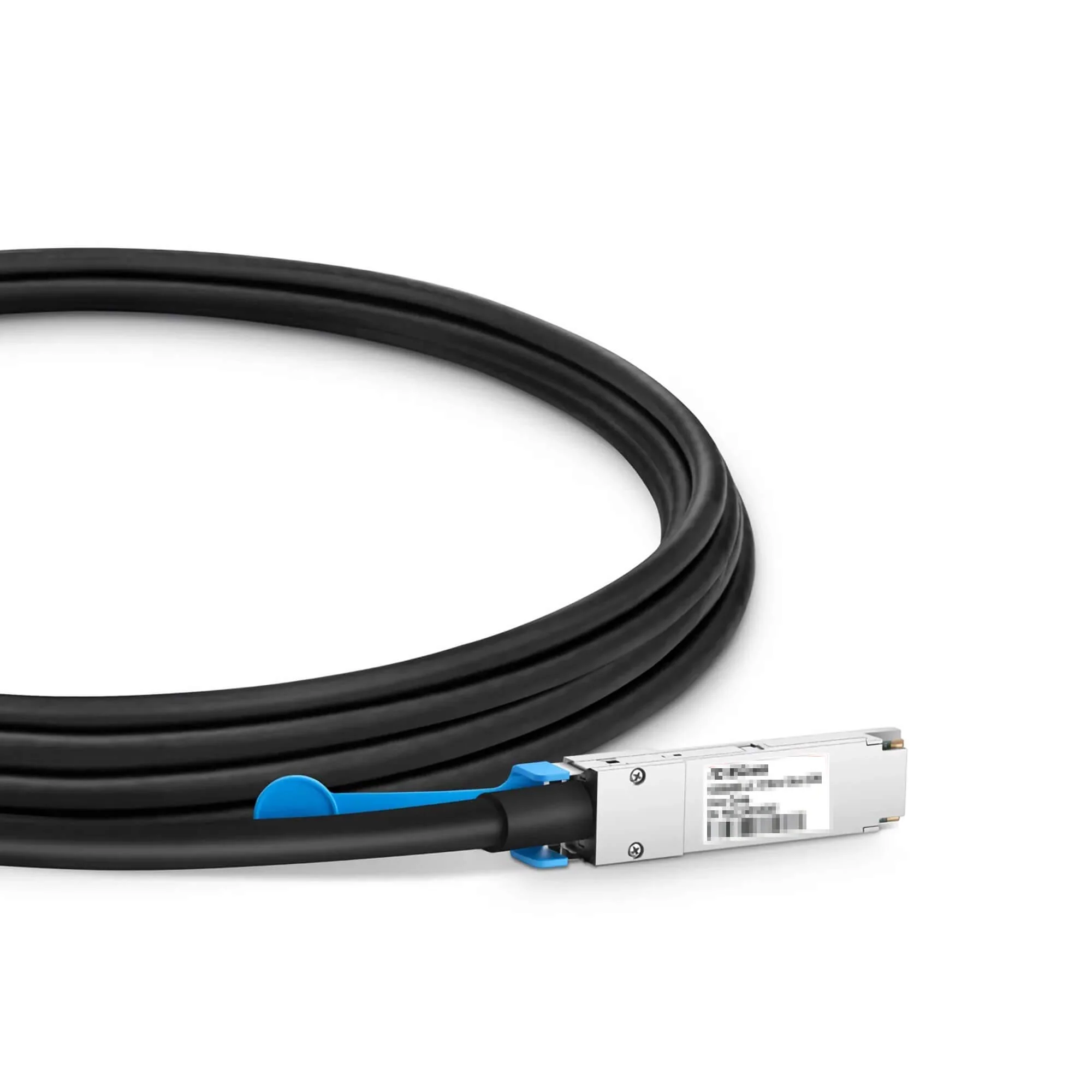

NSComm 40G QSFP+ Active Direct Attach Copper Cable up to 10m(33ft)
40G QSFP+ to QSFP+ Active Direct Attach Copper Cable (ACC/DAC), Active Twinax
Overview
The NSComm 40G QSFP+ Active Direct Attach Copper (ACC/DAC) Twinax Cable is a high-speed, cost-effective interconnect for 40GbE short-reach links. With integrated QSFP+ connectors on both ends, it delivers plug-and-play deployment and avoids the cost and complexity of separate optical transceivers and fiber patch cords.
Engineered for stable data center performance, this active twinax cable supports consistent throughput with low power consumption (up to 1.5W) and tidy rack routing thanks to a 40mm minimum bend radius. It is compliant with IEEE 802.3ba and QSFP MSA, making it a dependable choice for short 40G connections within a rack or between adjacent racks.
Compatibility Options (Coding)
NSComm provides multiple vendor coding options (selectable on the product page) to match your switch, router, NIC, or server requirements across major platforms.
Not sure which coding you need? Contact our certified engineers and we'll help confirm the right option for your exact model.
Use Scenarios / Applications
-
ToR/Leaf interconnects: connect Top-of-Rack or leaf switches for short 40G uplinks inside the rack.
-
Switch-to-switch aggregation links: quick 40G connections between access and aggregation layers during upgrades or expansion.
-
High-speed server/storage attachment: short 40G links where low latency and simple cabling are required.
-
Mixed-protocol short links: supports common 40GbE and data center short-reach interconnect use cases.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 40G QSFP+ to QSFP+ Active Direct Attach Copper (ACC/DAC) Twinax Cable |
| Connector Type | QSFP+ to QSFP+ |
| Max Data Rate | 40Gbps |
| Cable Type | Active Twinax |
| Power Consumption | Up to 1.5W |
| Minimum Bend Radius | 40mm |
| Jacket Material | PVC (OFNR) |
| Temperature Range | 0 to 70C |
| Standards / Compliance | IEEE 802.3ba, QSFP MSA |
| Supported Protocols | 40GbE, 10G/40G Ethernet, Fibre Channel, InfiniBand (DDR/QDR) |
| Warranty | 5 Years |
Why Choose NSComm 40G ACC/DAC?
-
Low latency: direct copper interconnect with no optical conversion.
-
Cost-effective: lowers total cost vs optics + fiber patching for short runs.
-
Simplified deployment: integrated QSFP+ ends enable fast plug-and-play installs.
-
Efficient performance: active design supports stable 40G throughput for short links.
-
Flexible routing: 40mm minimum bend radius for cleaner rack management.
-
Engineer-backed support: get coding/compatibility guidance from certified engineers.
Options
Available lengths: 7m, 10m
Coding options: selectable for different vendors (choose the matching option on the product page)
