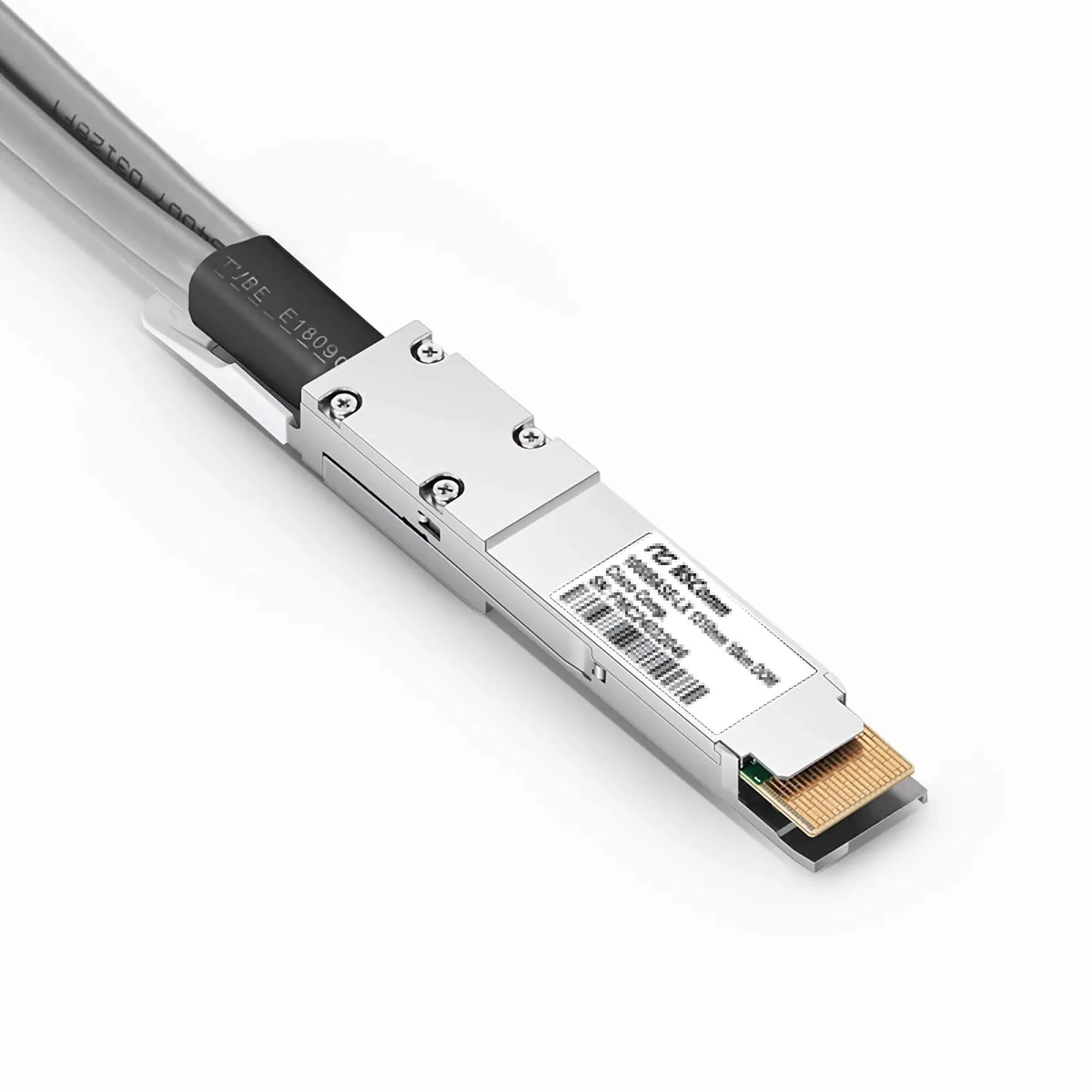

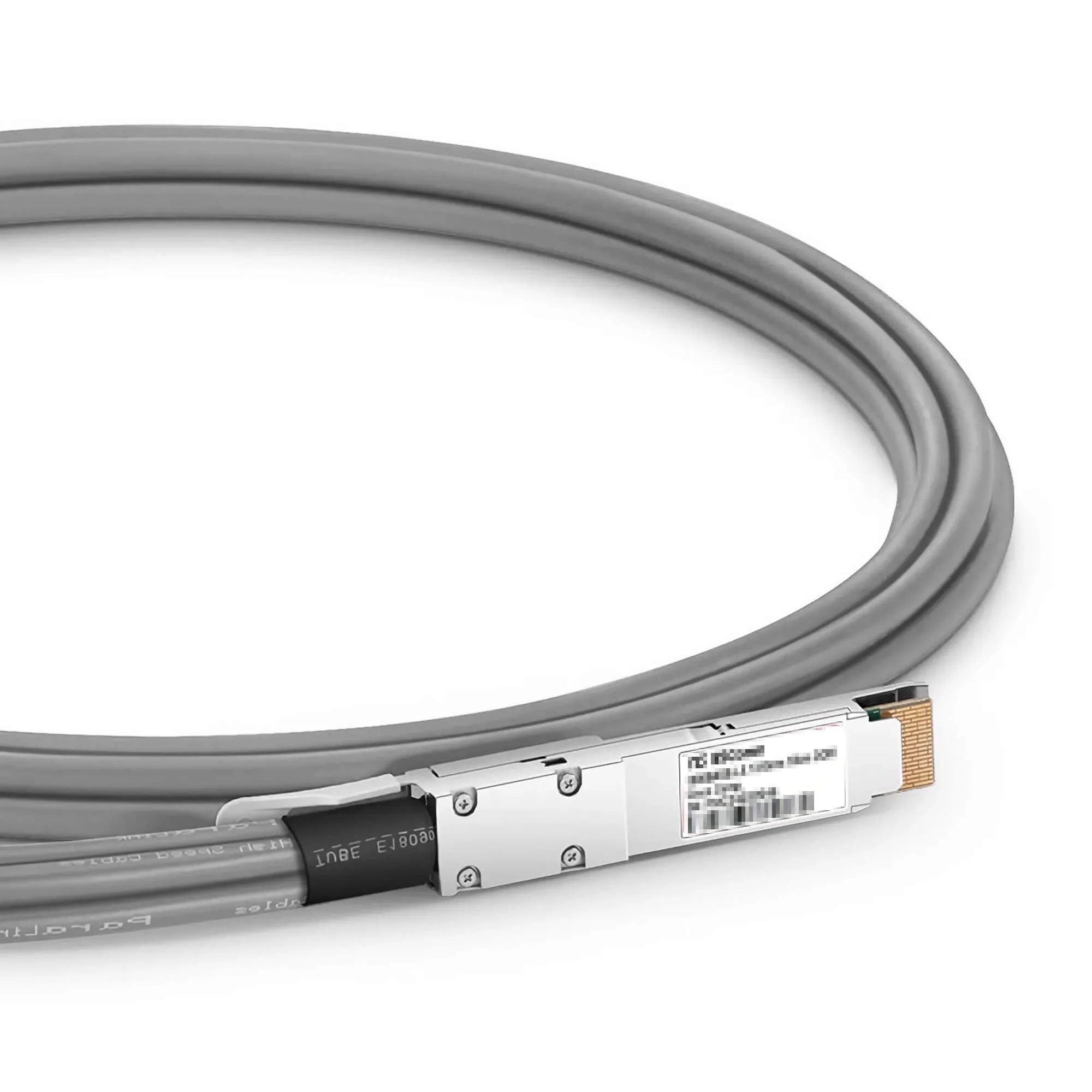

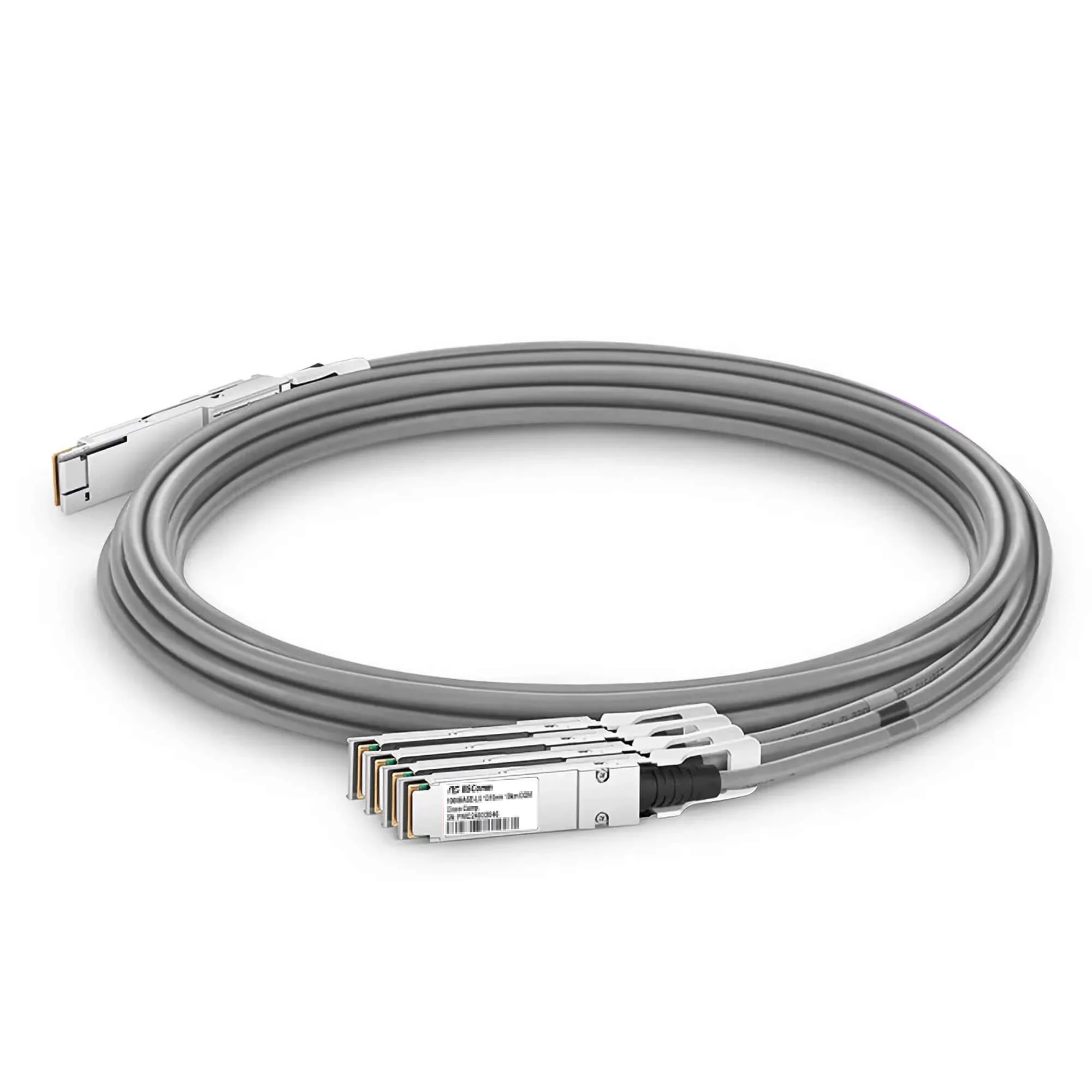

NSComm NVIDIA/Mellanox Compatible 400G QSFP-DD to 4 x 100G QSFP28 Ethernet Active Electrical Breakout Cable 3m(10ft)
NSComm NVIDIA/Mellanox Compatible 400G QSFP-DD to 4 x 100G QSFP28 Ethernet Active Electrical Breakout Cable 3m(10ft)
400G QSFP-DD to 4¡Á100G QSFP28 Ethernet Active Electrical Breakout Cable (AEC)
Overview
The NSComm 400G QSFP-DD to 4¡Á100G QSFP28 Active Electrical Cable (AEC) Breakout is a high-performance copper fanout solution that lets you split one 400G QSFP-DD port into four 100G QSFP28 links for short-reach deployments. Unlike passive copper, AEC uses active signal conditioning to improve PAM4 link stability, making it a strong choice when you need reliable high-speed breakouts without moving to optics.
Because NVIDIA Ethernet is the most common ecosystem in modern AI and high-density data centers, this breakout AEC supports NVIDIA (ETH) coding options on the product page-recommended for NVIDIA switch/NIC environments-while still allowing selectable options for broader multi-vendor use. It supports 400G to 4¡Á100G interoperability and uses a built-in gearbox to convert 8¡Á53G PAM4 into four 4¡Á25G NRZ lanes, enabling practical 100G QSFP28 fanout. With a 26.5mm minimum bend radius, it helps keep rack cabling clean and manageable.
Compatibility Options (Coding) - NVIDIA Focus, Multi-Vendor Ready
-
Recommended option: choose NVIDIA (ETH) coding for mainstream NVIDIA Ethernet switch/NIC environments.
-
Also available: selectable coding options for other platforms (choose the matching option on the product page).
Need help confirming the right coding? Contact our certified engineers for quick validation.
Use Scenarios / Applications
-
400G switch port to four 100G servers/NICs: ideal for ToR/leaf switches breaking out to multiple 100G endpoints in the rack.
-
Leaf access fanout: use one 400G uplink port to feed four 100G downlinks for rack pods and edge rows.
-
Phased upgrades: deploy 400G switching now while keeping existing 100G QSFP28 devices during migration.
-
When passive fanout is unstable: choose AEC when you need better signal integrity for copper fanout at high speeds.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G QSFP-DD to 4¡Á100G QSFP28 Active Electrical Breakout Cable (AEC) |
| Connector Type | QSFP-DD to 4¡ÁQSFP28 |
| Max Data Rate | 400Gbps (4¡Á100Gbps) |
| Cable Type | AEC (Active Electrical Cable) |
| Lane Conversion | 8¡Á53G PAM4 ¡ú 4¡Á(4¡Á25G NRZ) (built-in gearbox) |
| Power Consumption | ¡Ü8.5W @QSFP-DD end; ¡Ü3.5W @QSFP28 end |
| Minimum Bend Radius | 26.5mm |
| Wire AWG | 30AWG |
| Cable Length | 3m |
| Jacket Material | PVC (OFNR) |
| Temperature Range | 0 to 70¡ãC |
| Warranty | 5 Years |
Why Choose NSComm 400G¡ú4¡Á100G QSFP28 Breakout AEC?
-
NVIDIA-ready: supports NVIDIA (ETH) coding for mainstream deployments.
-
One 400G port, four 100G links: maximize port utilization and simplify fanout.
-
Better copper reliability: active design + gearbox helps stabilize high-speed breakout links.
-
Clean cabling: tight 26.5mm bend radius for dense racks.
-
Cost control: practical alternative to optics for short-reach fanouts.
-
Engineer-backed support: coding selection and topology guidance available.
Options
Available length: 3m
Coding options: select NVIDIA (ETH) or other vendor coding on the product page
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Original: $3,249.00
-70%$3,249.00
$974.70More Images
