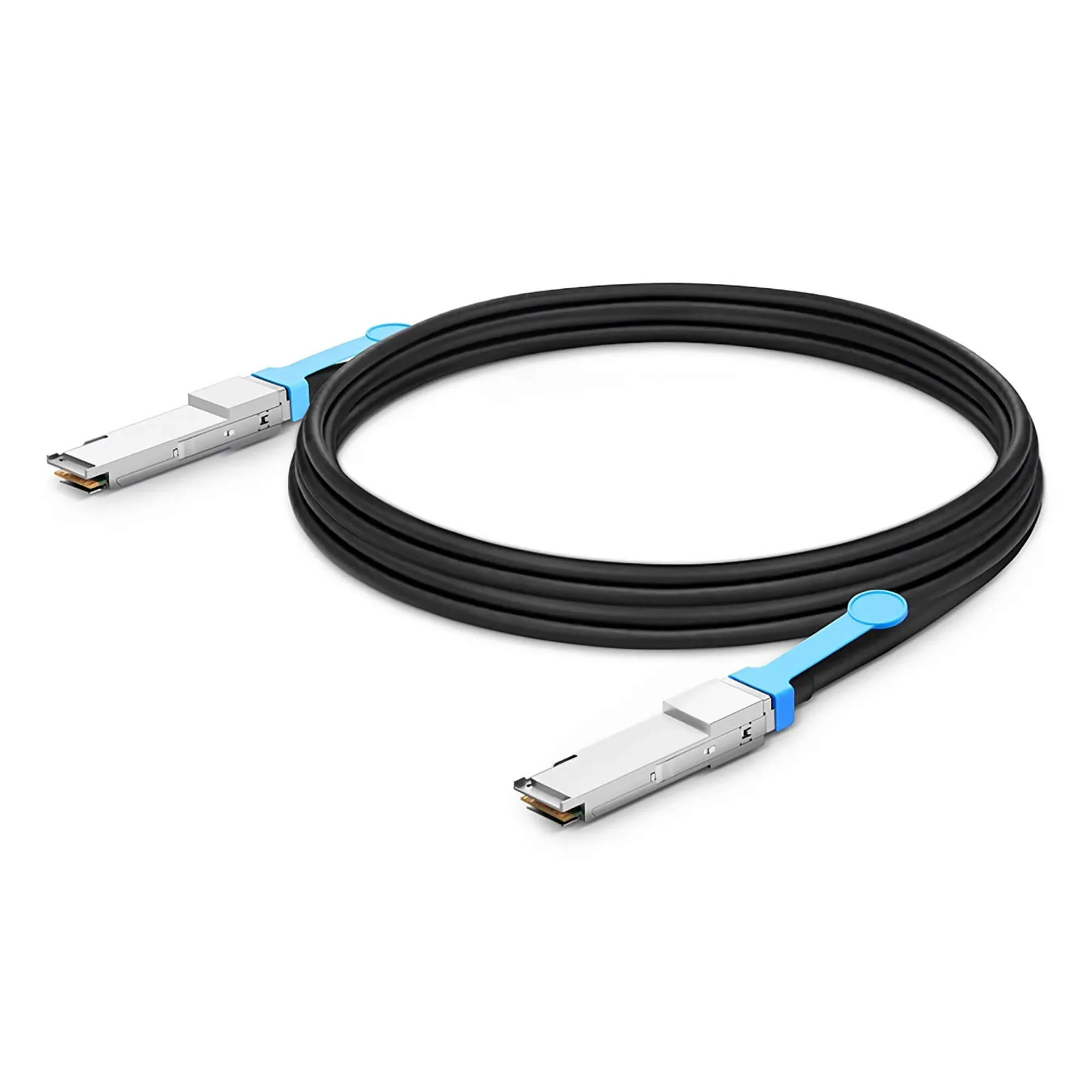

NSComm NVIDIA/Mellanox Compatible 200G QSFP56 Active Direct Attach Copper Twinax Cable up to 7m(23ft)
NSComm NVIDIA/Mellanox Compatible 200G QSFP56 Active Direct Attach Copper Twinax Cable up to 7m(23ft)
200G QSFP56 to QSFP56 Active Direct Attach Copper Twinax Cable (ACC/DAC), Active Twinax
Overview
The NSComm 200G QSFP56 Active Direct Attach Copper (ACC/DAC) Twinax Cable is a high-speed, cost-effective interconnect solution for 200GbE short-reach links in modern data centers. With integrated QSFP56 connectors on both ends, it enables plug-and-play deployment and reduces the need for separate optical transceivers and fiber patch cords for short distances.
For today's mainstream 200G deployments, NVIDIA Ethernet environments are especially common. NSComm supports NVIDIA (Ethernet) coding options on the product page, making it easy to match typical NVIDIA-based switching and server platforms-while still offering selectable coding for other major vendors when needed. Built-in retiming silicon (Macom) delivers stable performance with max power consumption 1.5W per end, and the cable remains easy to route with a 33mm minimum bend radius.
Compatibility Options (Coding) - NVIDIA Focus, Multi-Vendor Ready
-
Recommended option: choose NVIDIA (Ethernet) coding for mainstream NVIDIA Ethernet switch/NIC environments.
-
Also available: selectable coding options for other major platforms (choose the matching option on the product page).
Not sure which coding you need? Contact our certified engineers and we'll help confirm the right option for your exact model.
Use Scenarios / Applications
-
NVIDIA Ethernet rack interconnects: connect 200G QSFP56 ports between Ethernet switches and servers/NICs for short in-rack links.
-
Leaf/ToR fabric links (short reach): 200G connections between ToR/leaf switches within the rack or adjacent racks in compact pods.
-
Server/storage connectivity: short 200G links for high-throughput storage or compute nodes where low latency and simple cabling matter.
-
Fast cluster expansion: add 200G links quickly without deploying optics for short-distance runs.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 200G QSFP56 to QSFP56 Active Direct Attach Copper (ACC/DAC) Twinax Cable |
| Form Factor | QSFP56 to QSFP56 |
| Max Data Rate | 200Gbps |
| Media | Copper |
| Cable Type | Active Twinax |
| Retiming / Chip | Built-in Macom chip |
| Max Power Consumption | 1.5W per end |
| Minimum Bend Radius | 33mm |
| Jacket Material | PVC (OFNR) |
| Temperature Range | 0 to 70C |
| Standards / Compliance | IEEE 802.3cd, SFF-8665, SFF-8679, SFF-8636 (QSFP56/200G ecosystem) |
| EEPROM | Yes (host-readable product information) |
| Warranty | 5 Years |
Why Choose NSComm 200G QSFP56 ACC/DAC?
-
NVIDIA-ready: supports NVIDIA (Ethernet) coding for mainstream 200G deployments.
-
Low latency: direct copper interconnect-no optical conversion.
-
Cost-effective: reduces optics + fiber patching cost for short links.
-
Stable 200G performance: retimed active design with Macom silicon.
-
Efficient power: up to 1.5W per end for reliable short-reach operation.
-
Clean cabling: 33mm minimum bend radius for easier rack routing.
-
Engineer-backed support: coding selection and topology guidance available on request.
Options
Available lengths: 3m, 5m, 7m
Coding options: selectable for NVIDIA (Ethernet) and other major vendors (choose on the product page)
