AIR-AP1562E-X

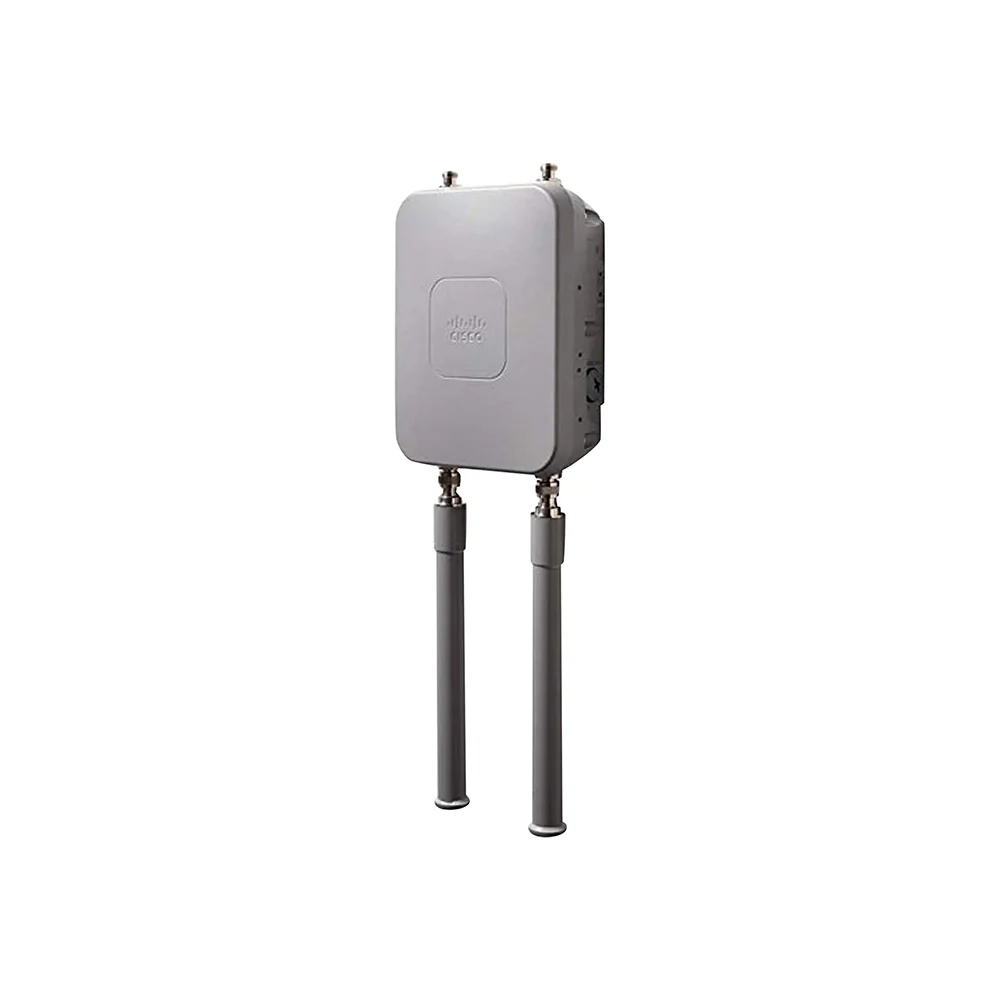

Aironet AP1562E-X Outdoor Access Point Overview

The Cisco AIR-AP1562E-X-K9 is an outdoor access point that supports the latest 802.11ac Wave 2 technology, designed for rugged environments. With its 3x3 MIMO and up to 1.3 Gbps data transfer, it ensures reliable and high-speed wireless connectivity. The Cisco Aironet 1560 Series provides flexible deployment modes, including point-to-point and mesh networks, and supports PoE+ for easy power delivery. Ideal for outdoor Wi-Fi coverage, this access point offers multi-user MIMO (MU-MIMO) for simultaneous client connections. For a high-performance, outdoor wireless solution, Shop Cisco Wireless APs and explore the Cisco Aironet 1560 Access Points like the Air-AP1562E-X.

Compare with Similar Item

Product Name	AIR-AP1562E-B-K9	AIR-AP1562D-A-K9
Antenna	External	Internal
Data Transfer Rate	1.3 Gbps	1.3 Gbps
Wireless Protocol	802.11a/b/g/n/ac Wave 2	802.11a/b/g/n/ac Wave 2
Wi-Fi Bands	2.4 GHz, 5 GHz	2.4 GHz, 5 GHz
Power Over Ethernet (PoE)	PoE+	PoE+



Specifications

AIR-AP1562E-X-K9 Specifications
802.11ac Wave 1 and 2 capabilities	● 1562I: 3 x 3 MIMO with three spatial streams ● 1562E/D 2 x 2 MIMO with two spatial streams ● Multi- and single-user MIMO ● Maximal Ratio Combining (MRC) ● 802.11ac beamforming (transmit beamforming) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic-Shift-Diversity (CSD) support
802.11n (and related) capabilities	● 1562I: 3 x 3 MIMO with three spatial streams ● 1562E/D: 2 x 2 MIMO with two spatial streams ● MRC● 20- and 40-MHz channels● PHY data rates up to 450 Mbps ● Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) ● 802.11 DFS● CSD support
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 and 5 GHz:
	MCS Index	GI4 = 800 ns					GI = 400 ns
		20-MHz Rates (Mbps)			40-MHz Rates (Mbps)			20-MHz Rates (Mbps)			40-MHz Rates (Mbps)
	0	6.5			13.5			7.2			15
	1	13			27			14.4			30
	2	19.5			40.5			21.7			45
	3	26			54			28.9			60
	4	39			81			43.3			90
	5	52			108			57.8			120
	6	58.5			121.5			65			135
	7	65			135			72.2			150
	8	13			27			14.4			30
	9	26			54			28.9			60
	10	39			81			43.3			90
	11	52			108			57.8			120
	12	78			162			86.7			180
	13	104			216			115.6			240
	14	117			243			130			270
	15	130			270			144.4			300
	16	19.5			40.5			21.7			45
	17	39			81			43.3			90
	18	58.5			121.5			65			135
	19	78			162			86.7			180
	20	117			243			130			270
	21	156			324			173.3			360
	22	175.5			364.5			195			405
	802.11ac Data Rates (5 GHz)
	Spatial Streams	MCS	GI = 800 ns						GI = 400 ns
			20 MHz			40 MHz	80 MHz		20 MHz	40 MHz		80 MHz
	1	0	6.5			13.5	29.3		7.2	15		32.5
	1	1	13			27	58.5		14.4	30		65
	1	2	19.5			40.5	87.8		21.7	45		97.5
	1	3	26			54	117		28.9	60		130
	1	4	39			81	175.5		43.3	90		195
	1	5	52			108	234		57.8	120		260
	1	6	58.5			121.5	263.3		65	135		292.5
	1	7	65			135	292.5		72.2	150		325
	1	8	78			162	351		86.7	180		390
	1	9	–			180	390		–	200		433.3
	2	0	13			27	58.5		14.4	30		65
	2	1	26			54	117		28.9	60		130
	2	2	39			81	175.5		43.3	90		195
	2	3	52			108	234		57.8	120		260
	2	4	78			162	351		86.7	180		390
	2	5	104			216	468		115.6	240		520
	2	6	117			243	526.5		130	270		585
	2	7	130			270	585		144.4	300		650
	2	8	156			324	702		173.3	360		780
	2	9	–			360	780		–	400		866.7
	3	0	19.5			40.5	87.8		21.7	45		97.5
	3	1	39			81	175.5		43.3	90		195
	3	2	58.5			121.5	263.3		65	135		292.5
	3	3	78			162	351		86.7	180		390
	3	4	117			243	526.5		130	270		585
	3	5	156			324	702		173.3	360		780
	3	6	175.5			364.5	–		195	405		–
	3	7	195			405	877.5		216.7	450		975
	3	8	234			486	1053		260	540		1170
	3	9	260			540	1170		288.9	600		1300
Maximum number of nonoverlapping channels	2.4 GHz ● 802.11b/g: ● 20 MHz: 3 ● 802.11n: ● 20 MHz: 3 ● 40 MHz: 1 (hardware capable)						5 GHz ● 802.11a: ● 20 MHz: 27 ● 802.11n: ● 20 MHz: 27 ● 40 MHz: 13 ● 802.11ac: ● 20 MHz: 27 ● 40 MHz: 13 ● 80 MHz: 6
Maximum conducted transmit power	1562I ● 2.4 GHz: 29 dBm with 3 antennas ● 5 GHz: 29 dBm with 3 antennas					1562D ● 2.4 GHz: 27 dBm with 2 antennas ● 5 GHz: 27 dBm with 2 antennas				1562E ● 2.4 GHz: 27 dBm with 2 antennas ● 5 GHz: 27 dBm with 2 antennas
Interfaces	● WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in ● SFP port (fiber or electrical)● Management console port (RJ-45) ● Multicolor LED● DC power input● Reset button
Uplink options	Ethernet, SFP, and wireless mesh
Dimensions (L x W x D)	1562I: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm) 1562D: 9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm) 1562E:: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
Weight	1562I: 5.6 lb (2.5 kg) 1562D: 5.7 lb (2.6 kg) 1562E: 5.6 lb (2.5 kg)
Environmental	Operating temperature: ● –40 to 65°C (–40 to 149°F) ambient air with no solar loading ● –40 to 55°C (–40 to 131°F) ambient air with solar loading Storage temperature: –40 to 85°C (–40 to 185°F) Humidity: 5 - 95%, non-condensing Wind resistance: ● Up to 100-mph sustained winds ● Up to 165-mph wind gusts
Environmental ratings	● IEC 60529 IP67 ● NEMA Type 4X ● Icing protection NEMA 250-2008 ● Corrosion NEMA 250-2008 (600 hours) ● Solar radiation EN 60068-2-5 (1200 W/ m2) ● Vibration MIL-STD-810
Antennas	● Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz) ● Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz) ● Dual Band ● AIR-ANT2568VG-N 6 dBi (2.4 GHz), 8 dBi (5 GHz) Omni ● AIR-ANT2547VG-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni ● AIR-ANT2547V-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni ● AIR-ANT2588P3M-N= 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional ● AIR-ANT2513P4M-N= 13 dBi (2.4 GHz), 13 dBi (5 GHz) Directional ● Single Band2.4 GHz ● AIR-ANT2450V-N= 5 dBi (2.4 GHz), Omni ● AIR-ANT2450VG-N= 5 dBi (2.4 GHz), Omni, vertical polarized ● AIR-ANT2450HG-N= 5 dBi (2.4 GHz), Omni, horizontal polarized ● AIR-ANT2480V-N= 8 dBi (2.4 GHz), Omni ● AIR-ANT2413P2M-N= 13 dBi (2.4 GHz), Directional, dual polarized5 GHz ● AIR-ANT5150VG-N= 5 dBi (5GHz), Omni, vertical polarized ● AIR-ANT5150HG-N= 5 dBi (5GHz), Omni, horizontal polarized ● AIR-ANT5180V-N= 8 dBi (5GHz), Omni ● AIR-ANT5114P2M-N= 14 dBi (5GHz), Directional, dual polarized
Powering options	● AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter) ● 44–57 VDC input ● Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at ● Cisco power injectors: AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug) AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable) AIR-PWRINJ6= (indoor, 802.3at) Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.
Power consumption	1562I 32 W (3x3:3, full power)1562D/E 25 W
Compliance	Safety ● UL60950, 2nd Edition● CAN/CSA-C22.2 No. 60950, 2nd Edition ● IEC 60950, 2nd Edition● EN 60950, 2nd EditionImmunity ● <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform● ANSI/IEEE C62.41 ● EN61000-4-5 Level 4 AC Surge Immunity ● EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity ● EN61000-4-3 Level 4 EMC Field Immunity● EN61000-4-2 Level 2 ESD Immunity ● EN60950 Overvoltage Category IVRadio Approvals● FCC Part 15.247, 15.407 ● FCC Bulletin OET-65C● RSS-247● RSS-102● AS/NZS 4268.2003 ● ARIB-STD 66 (Japan)● ARIB-STD T71 (Japan)● EN 300 328 ● EN 301 893EMI and Susceptibility● FCC part 15.107, 15.109● ICES-003 ● EN 301 489-1, -17Security● Wireless bridging/mesh (future availability) ● X.509 digital certificates● MAC address authentication ● Advanced Encryption Standard (AES)Wireless Access ● 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA ● 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module - (EAP-SIM), and Cisco LEAP● VPN pass-through● IP Security (IPsec) ● Layer 2 Tunneling Protocol (L2TP)● MAC address filtering
