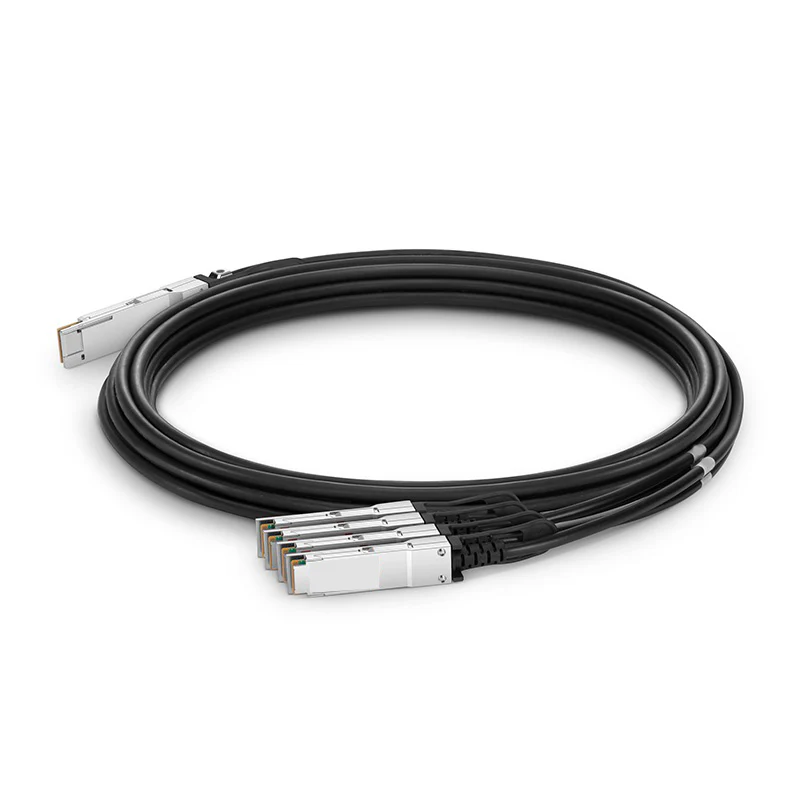

NSComm 400G PAM4 QSFP-DD to 4x100G QSFP56 Direct Attach PVC Copper Cable, up to 3m
400G PAM4 QSFP-DD to 4×100G QSFP56 Direct Attach Copper Cable (DAC), PVC, Passive, up to 3 m (10 ft)
Overview
The NSComm 400G PAM4 QSFP-DD to 4×100G QSFP56 Direct Attach Copper Cable (DAC) is a breakout copper interconnect purpose-built for 400G-to-4×100G Ethernet applications in hyperscale data centers, HPC clusters, and enterprise networks.
With one QSFP-DD connector on one end and four QSFP56 connectors on the other, it enables seamless 400G-to-100G breakout connectivity with ultra-low latency and cost efficiency.
Manufactured with twinax copper conductors and a protective PVC jacket, the DAC ensures excellent EMI immunity, durability, and stability. The passive version supports lengths up to 3 m (10 ft) with negligible power draw, while active variants can extend up to 5 m (16 ft) with ≤ 4 W per end.
Compatible Brands
The NSComm 400G QSFP-DD to 4×100G QSFP56 DAC works seamlessly with devices from Cisco, Huawei, Juniper, Arista, Dell and Nvidia.
Need confirmation for a specific model? [Contact Us Now] and our team will assist.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G PAM4 QSFP-DD to 4×100G QSFP56 Direct Attach Copper Cable (DAC) |
| Data Rate | 400 Gbps total, breakout into 4×100 Gbps channels (PAM4) |
| Cable Type | Twinax Copper, PVC Jacket, Passive/Active |
| Max Cable Distance | Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m) |
| Connector Type | 1× QSFP-DD to 4× QSFP56 |
| Power Consumption | Passive ≈ 0 W, Active ≤ 4 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP-DD MSA (SFF-8679), QSFP56 MSA (SFF-8665), IEEE 802.3cd/802.3bs, RoHS |
| Applications | 400G-to-100G breakout, switch uplinks, leaf-spine aggregation |
Why Choose NSComm 400G QSFP-DD to 4×100G DAC?
-
Breakout design: Converts one 400G port into four 100G channels.
-
Cost savings: Eliminates the expense of optics and patch cords.
-
Ultra-low latency: Direct copper transmission path.
-
Energy efficient: Passive requires no power; active ≤ 4 W.
-
Multi-vendor interoperability: Tested with all leading network brands.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)
Extended (active) lengths:
5 m (16 ft)
